E3MAC-1P
Modular AC Inverter
Optional Web-based Monitoring Platform - easily view, interact with, download and manage records as needed on any PC or mobile device.
Programmable and password protected user interface
98% efficient for minimal BTU losses
Available Downloads
Specification Sheet
Boilerplate Spec
Optional Breaker Flowchart
Contractors Guide: 1.0-3.0KVA Single Phase
Contractors Guide: 4.0-6.0KVA Single Phase
Contractors Guide: 8.0-12.5KVA Single Phase
Drawing 1.0KVA 1P
Drawing 1.6-3.0KVA 1P
Drawing 4.0-18.0KVA 1P & 3P
Installation Guide - Wall Mounting
Inverter Start-Up Request Form
Inverter Sell Sheet
E3MAC BMS Points List
Auxiliary Cabinet Technical Sheet
Battery Safety Sheet
Manual
Boilerplate Spec
Optional Breaker Flowchart
Contractors Guide: 1.0-3.0KVA Single Phase
Contractors Guide: 4.0-6.0KVA Single Phase
Contractors Guide: 8.0-12.5KVA Single Phase
Drawing 1.0KVA 1P
Drawing 1.6-3.0KVA 1P
Drawing 4.0-18.0KVA 1P & 3P
Installation Guide - Wall Mounting
Inverter Start-Up Request Form
Inverter Sell Sheet
E3MAC BMS Points List
Auxiliary Cabinet Technical Sheet
Battery Safety Sheet
Manual
- Optional Features
- Maintenance bypass switch
- Circuit breakers – supervised or unsupervised
- Maintenance contract/plan
- Remote Annunciator
- Factory startup – increases electronics warranty to 3 years
- Seismic Zone 4 – OSHPD approved
- Circuit breaker protected loads (Switched, Normally On, and Normally Off)
- Fault summary alarm and 2 programmable alarms – Form C dry contacts
- Keyed lockable enclosure
- Approvals
- UL924
- OSHPD Seismic Certified (with Z4 Option)
- New York City approved, Calendar #51575
- NFPA 101 Life Safety Code
- NFPA 70-NEC
- OSHA
- NEMA Type 1 enclosure
Product Details
Inverters provide the necessary power for emergency lighting if utility power is unavailable. Isolite inverters charge battery banks from utility power, discharge batteries to generate power in an emergency, and then transfer back to the utility power when available. Inverters also monitor the state of the utility power, automated code compliance and are more cost-effective than other solutions. Isolite offers small, medium, and building-scale inverters.

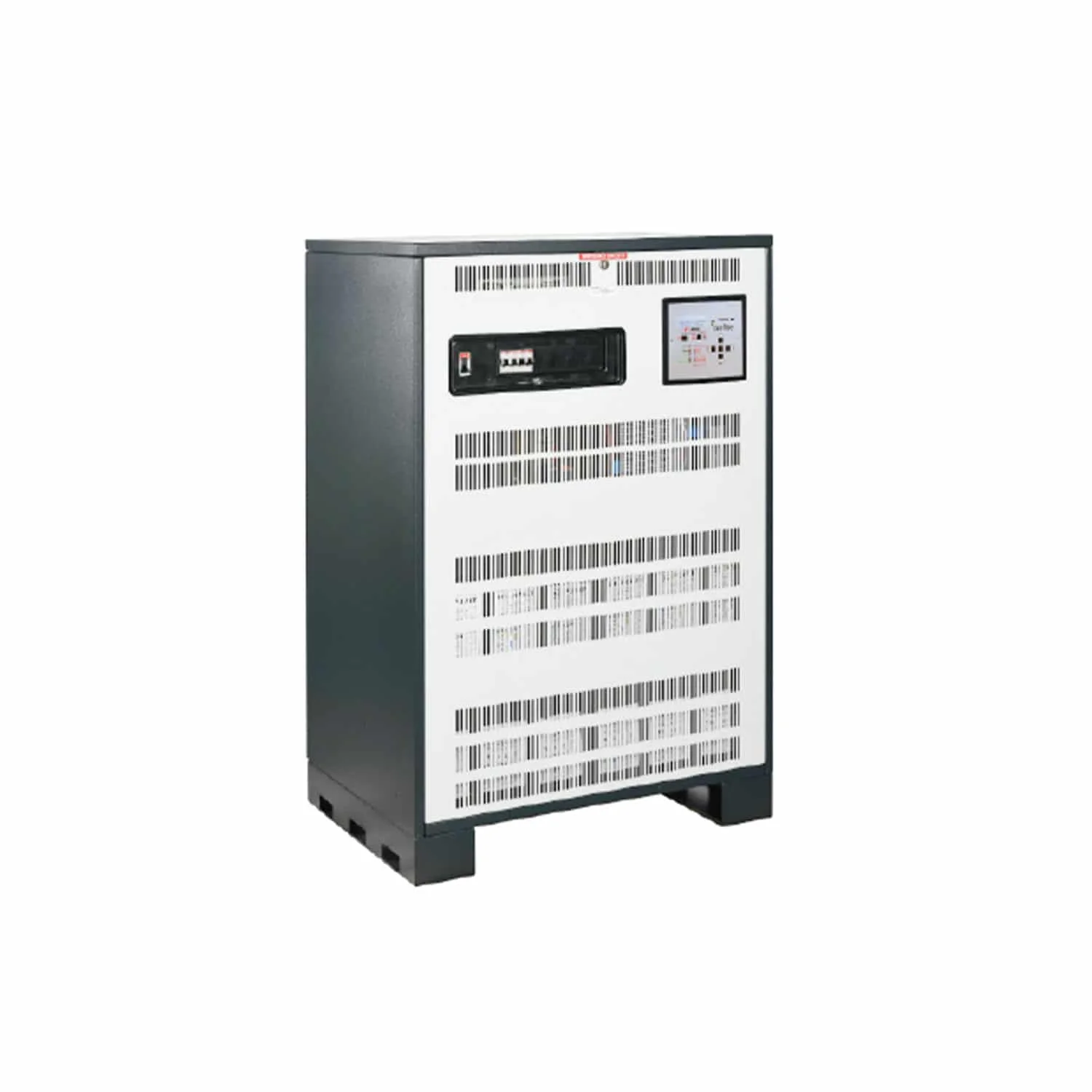

The Isolite E3MAC1P is a 1,000 – 12,500 VA single phase modular AC inverter. It has a programable and password-protected user interface allowing for optional web monitoring. It is 98% effective for minimal BTU losses and has a PWM Inverter that provides pure sine wave output with less than 3% THD. The programmable transfer time feature can be changed between standard and fast transfer times for better load and site compatibility. The crest factor has >4 overload protection for demanding high in-rush loads. The UL is listed for a 90-minute run-time and is compatible with all light loads, including HID. The inverter battery recharges in less than 24 hours and has a variable time delay, two-phase output, and a startup diagnostic to confirm proper installation.
The Isolite E3MAC1P is a 1,000 – 12,500 VA single phase modular AC inverter. It has a programable and password-protected user interface allowing for optional web monitoring. It is 98% effective for minimal BTU losses and has a PWM Inverter that provides pure sine wave output with less than 3% THD. The programmable transfer time feature can be changed between standard and fast transfer times for better load and site compatibility. The crest factor has >4 overload protection for demanding high in-rush loads. The UL is listed for a 90-minute run-time and is compatible with all light loads, including HID. The inverter battery recharges in less than 24 hours and has a variable time delay, two-phase output, and a startup diagnostic to confirm proper installation.
