HZZ
Class I Div 2 Emergency Light
Approved for use in Class I Div 2, Groups A-D. Class II Div 1 and 2, Groups E-G: T Coded T4A, 73B, T3A, T2D, T2A or T1.
NEMA 4X and IP66 rated for use in wet and damp applications.
Designed to stand up to abuse in applications such as schools, institutions, public areas, and apartment complexes where vandalism may occur.
Available Downloads
- Construction
- Fully gasketed, die-cast aluminum housing with impact resistant polycarbonate lens
- Stainless steel mounting feet and hardware allows for large gauge wire
- Industrial gray color standard
- Temperature Rating
- From 50°F to 104°F
- Approvals
- CSA-US Listed
- NEMA 4X
- Class I Div 2 Groups A-D
- Class II Div 1 & 2 Groups E-G
- IP66
- Sanitation Listed
- ETL Verified Splash Zone Listing Equal to NSF Standard 2
- Meets or exceeds UL 924 standards
- NFPA 101 Life Safety Code
- NFPA 70-NEC
- OSHA
- BAA Compliant
Product Details
Emergency lighting systems provide necessary illumination for facility occupants to access safe passage from a structure when standard lighting fails. Battery-supported emergency lighting illuminates the quickest and safest route to exit a building during a power failure. Building codes require that stairways, corridors, and egress points be lit in the event of a power failure.

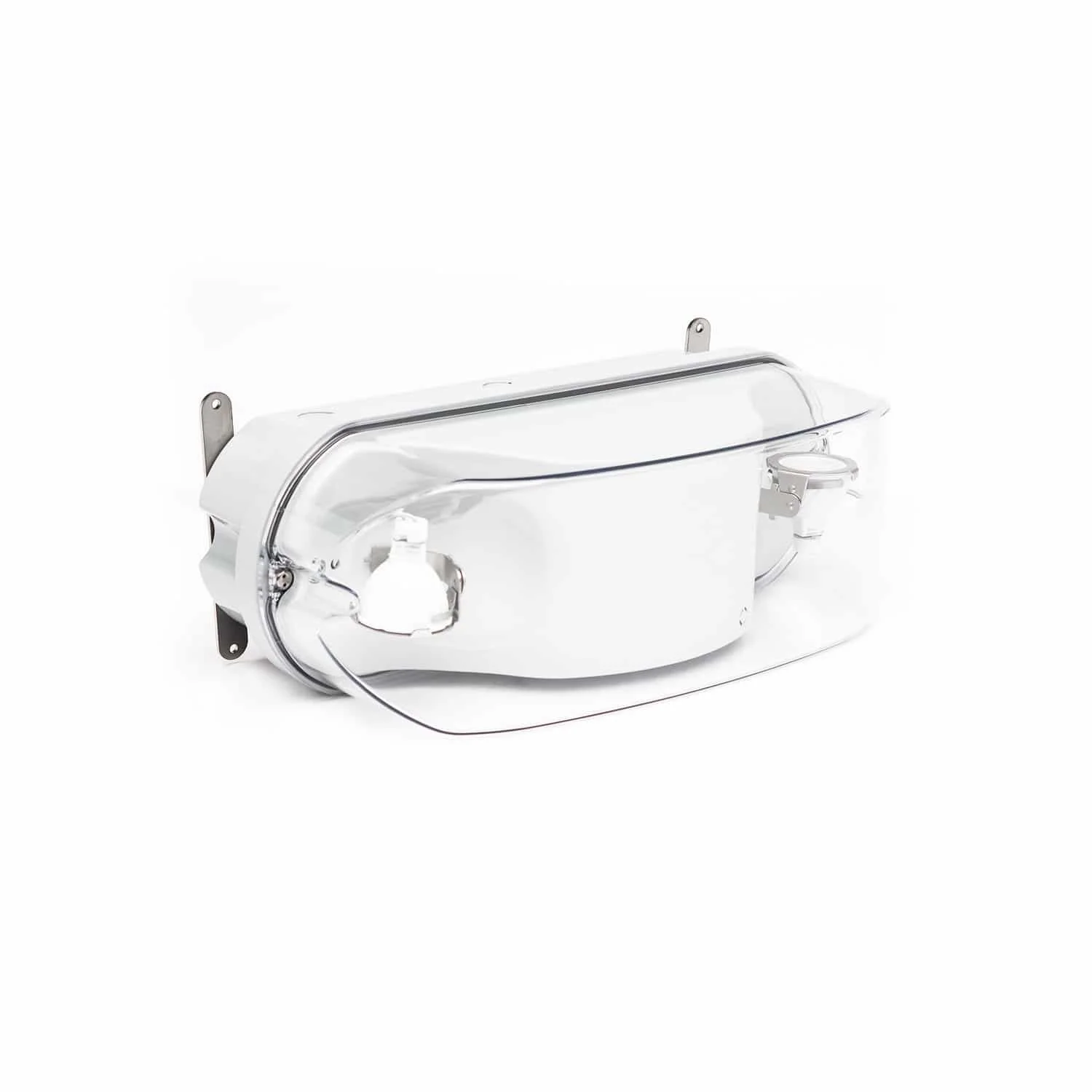

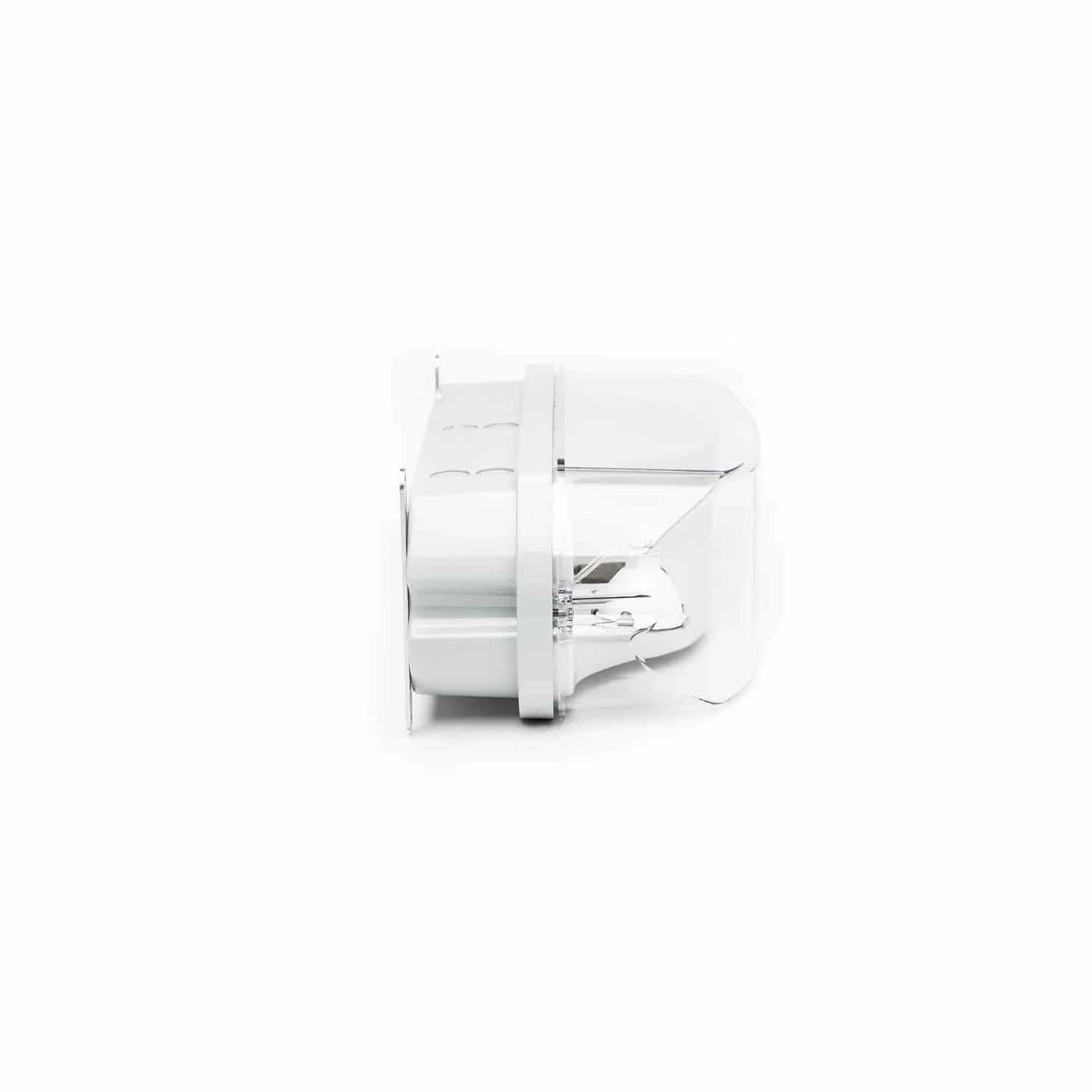

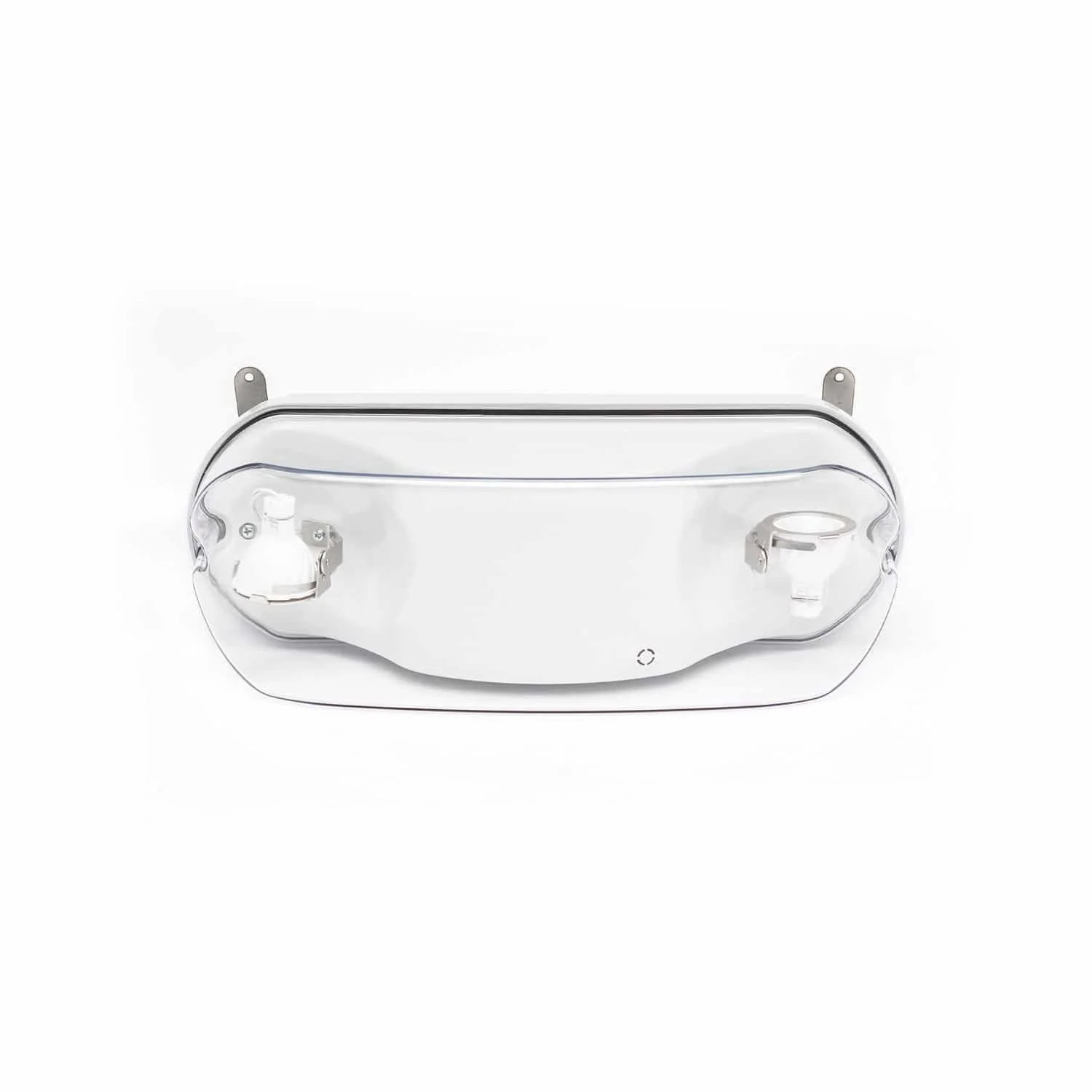

The HZZ Class 1 Div 2 Emergency Light is NEMA 4X and IP66 rated to withstand abuse in institutions, schools, apartment complexes, and other public areas where vandalism may occur. The fully gasketed, die-cast aluminum housing features an impact-resistant polycarbonate lens, conduit fitting approved for hazardous environments, and fully adjustable MR16 lamps with LED options. The HZZ emergency light provides up to 70.0” on-center illumination and is UL listed for 90 minutes of run-time. A low voltage cut-off prevents damage to the maintenance-free Ni-Cad battery and ensures a positive charge acceptance following an extended discharge. This emergency light comes in a standard industrial gray color with custom colors available. The HZZ Class 1 Div 2 Emergency Light is approved for use in Class I Div 2, Groups A-D. Class II Div 1 & 2, Groups E-G: T Coded T4A, 73B, T3A, T2D, T2A, or T1.
