ODLE

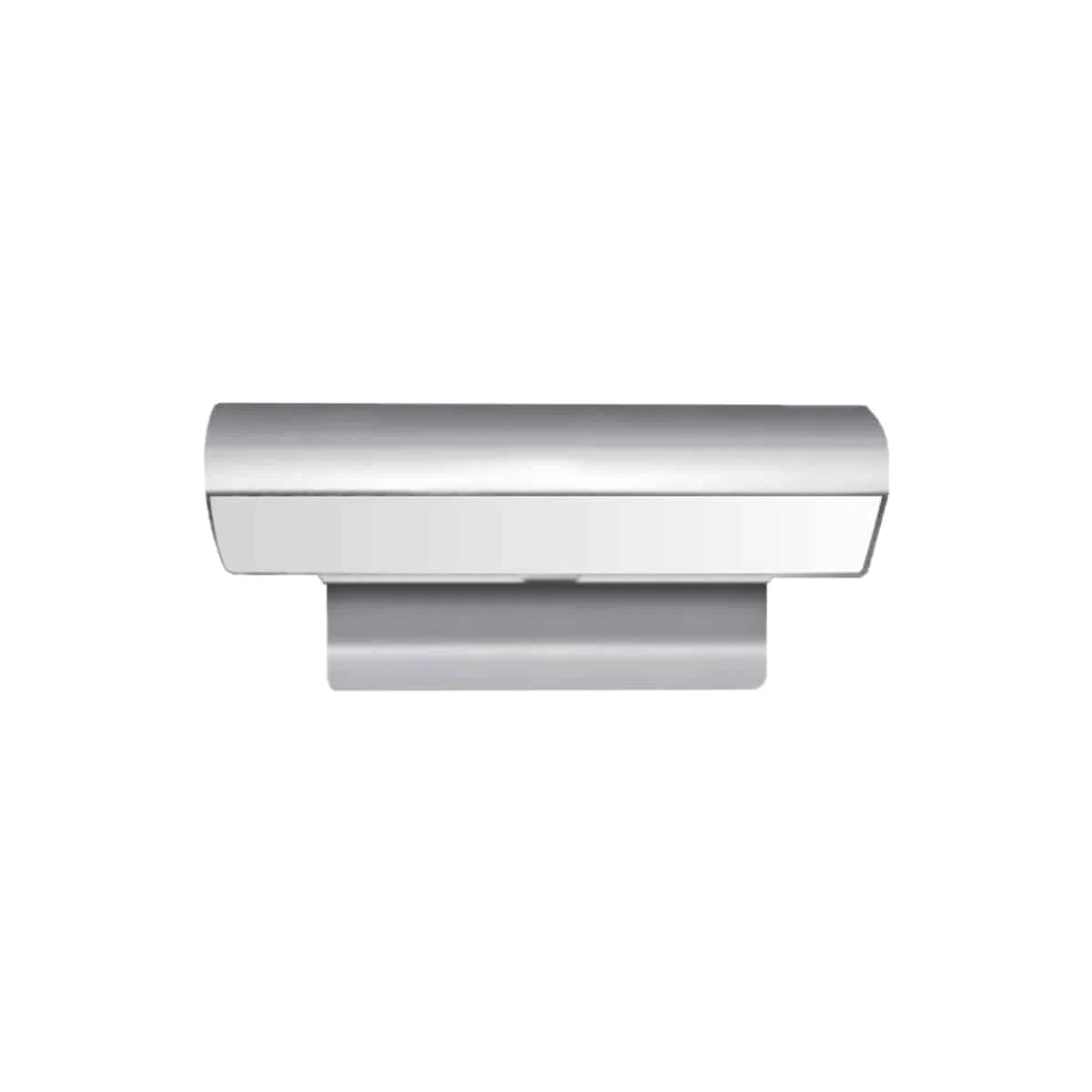

LED Outdoor Egress Emergency Light
Extremely low profile, formed aluminum housing.
Available in white, black or brushed aluminum finish.
Lamps are connected in parallel. If one lamp fails, one or more lamps will continue in operation.
Available Downloads
- Construction
- Low profile, formed aluminum housing
- Full 90° cut- off
- Lamp housing and canopy are fabricated from extruded aluminum
- Enamel or anodized finishes, with rugged sealed diffuser lens
- Stainless steel hardware
- Electrical
- Universal 120/277 VAC input for standard
- Power supply delivers regulated current and voltage to LED lamps at optimum levels to maximize lamp life
- Automatic battery diagnostics available for battery models
-
Temperature Rating
- EM: Backup Battery: -4°F to 104°F
- Approvals
- UL 924
- NFPA 101 Life Safety Code
- IP66
Product Details
Emergency lighting systems provide necessary illumination for facility occupants to access safe passage from a structure when standard lighting fails. Battery-supported emergency lighting illuminates the quickest and safest route to exit a building during a power failure. Building codes require that stairways, corridors, and egress points be lit in the event of a power failure.
ODLE LED outdoor egress emergency light offers an aluminum housing and very low profile. Lamps are wired in parallel so if one lamp fails, one or more will continue to operate. Standard CCTs in 5000k, options for 2900k, 3200k and 3800k and full 90-degree cutoff to meet Dark Sky requirements. ODLE offers 50,000+ hour lamp life and two wattages, 10w and 20w.
ODLE LED outdoor egress emergency light offers an aluminum housing and very low profile. Lamps are wired in parallel so if one lamp fails, one or more will continue to operate. Standard CCTs in 5000k, options for 2900k, 3200k and 3800k and full 90-degree cutoff to meet Dark Sky requirements. ODLE offers 50,000+ hour lamp life and two wattages, 10w and 20w.
