HZN

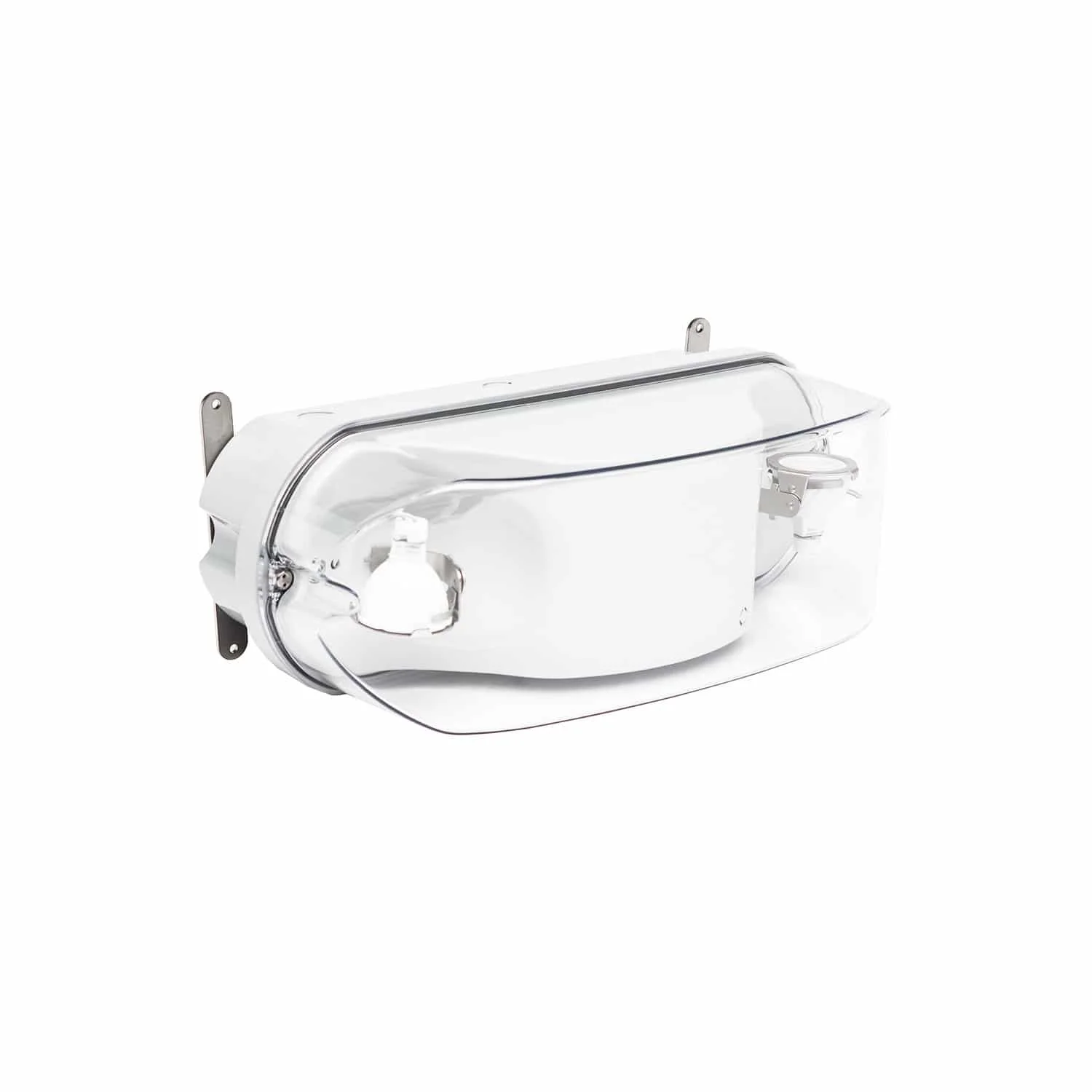

NEMA 4X/IP66 Emergency Light
NEMA 4X and IP66 rated for use in wet and damp applications.
Designed to stand up to abuse in applications such as schools, institutions, public areas, and apartment complexes where vandalism may occur.
Fully adjustable MR16 lamps with LED options.
Available Downloads
- Construction
- Fully gasketed, die-cast aluminum housing with impact resistant polycarbonate lens
- Stainless steel mounting feet and hardware
- Industrial gray color standard
- Temperature Rating
- Without Internal Heater: From 50°F to 104°F
- With Internal Heater: From -4°F to 104°F
- Approvals
- NEMA 4X
- IP66
- Intertek Verified Splash Zone
- CSA-US listed
- Meets or Exceeds UL 924 standards
- NFPA 101 Life Safety Code
- NFPA 70-NEC
- OSHA
- BAA Compliant
Product Details
Emergency lighting systems provide necessary illumination for facility occupants to access safe passage from a structure when standard lighting fails. Battery-supported emergency lighting illuminates the quickest and safest route to exit a building during a power failure. Building codes require that stairways, corridors, and egress points be lit in the event of a power failure.

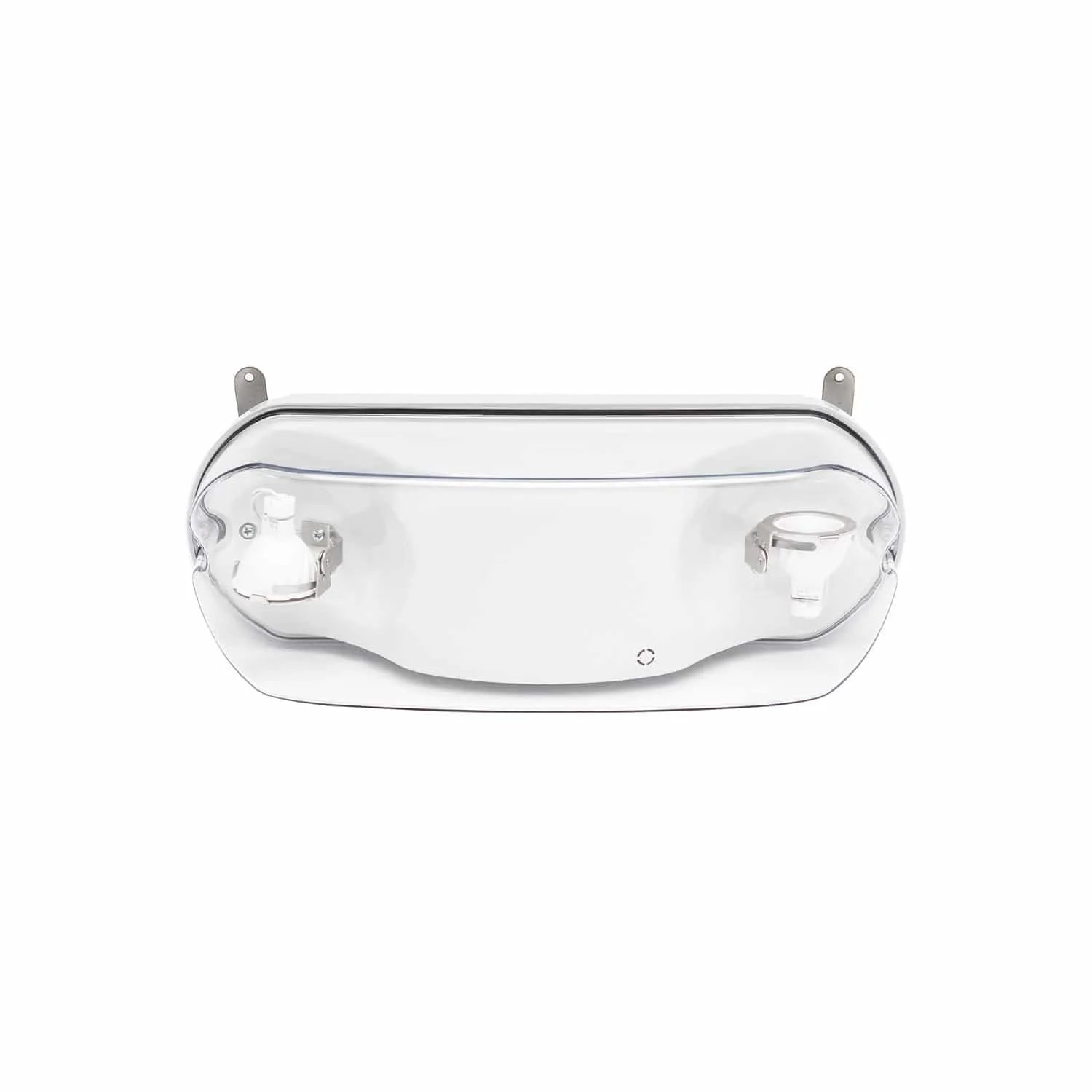

The HZN NEMA 4X/IP66 Emergency Light is designed to withstand abuse in schools, institutions, public areas, and apartment complexes where vandalism may occur. The HZN is constructed of a fully-gasketed, die-cast aluminum housing and features an impact-resistant polycarbonate lens and stainless steel mounting feet and hardware. This emergency light includes fully adjustable MR16 lamps with LED options. Emergency illumination of up to 70.0” on center allows for quick and safe exiting during an emergency. Self-test/self-diagnostic monitoring is available, and a low voltage cut-off prevents battery damage and ensures positive charge acceptance following an extended discharge. The maintenance-free Ni-Cad battery is protected by brownout detection to ensure emergency operation during periods of low line voltage. This model is suitable for back or ceiling mounting.
The HZN NEMA 4X/IP66 Emergency Light is designed to withstand abuse in schools, institutions, public areas, and apartment complexes where vandalism may occur. The HZN is constructed of a fully-gasketed, die-cast aluminum housing and features an impact-resistant polycarbonate lens and stainless steel mounting feet and hardware. This emergency light includes fully adjustable MR16 lamps with LED options. Emergency illumination of up to 70.0” on center allows for quick and safe exiting during an emergency. Self-test/self-diagnostic monitoring is available, and a low voltage cut-off prevents battery damage and ensures positive charge acceptance following an extended discharge. The maintenance-free Ni-Cad battery is protected by brownout detection to ensure emergency operation during periods of low line voltage. This model is suitable for back or ceiling mounting.
