ELTCG

Elite Edge-Lit Exit Sign, Custom Graphics

Premium long-life, high-temperature fused nickel cadmium battery with standard UL listed 3-hour run time.

Battery diagnostic system standard – battery status: detects cell failure and issues alert of reduced capacity and the need to replace battery.

Line-latch prevents unnecessary discharge of battery during installation. Loads will not illuminate until after application of utility power.

  • Construction
  • "Snap-in Lens” for easy installation
  • Recessed back box can be pre-installed at job site
  • Precision die-cast aluminum housing with a flawless, laser-formed acrylic legend
  • Hinged springs allow for concealed mounting hardware on recessed models
  • Back box can be pre-installed
  • Recessed back box meets New York specifications
  • Compatible with the LPDCREM and TLREM2 remote exit signs
  • Letters
  • 6.0” high; 0.75” stroke
    Arrows
  • NFPA-Type, universal field installable, self-adhesive chevrons
  • Approvals
  • UL 924
  • CEC Title 20 Compliant
  • NFPA 101 Life Safety Code
  • NFPA 70- NEC
  • OSHA
  • Recessed backbox is IC rated and meets New York specifications

Product Details

Above doors and in hallways around the globe, exit signs typically blend into the scenery in offices, stores, and nearly all public facilities. But in an emergency, clearly illuminated exit signs save lives by communicating the route of safe escape out of a building. These lighted signs also guide first responders as they navigate through unfamiliar structures. To ensure public safety, all facilities must install reliable illuminated exit signs that are visible at all times. The safety of patrons and employees should be the top priority of every business, company, and landlord. Properly illuminated emergency exit signs are a vital component of any emergency preparedness plan.

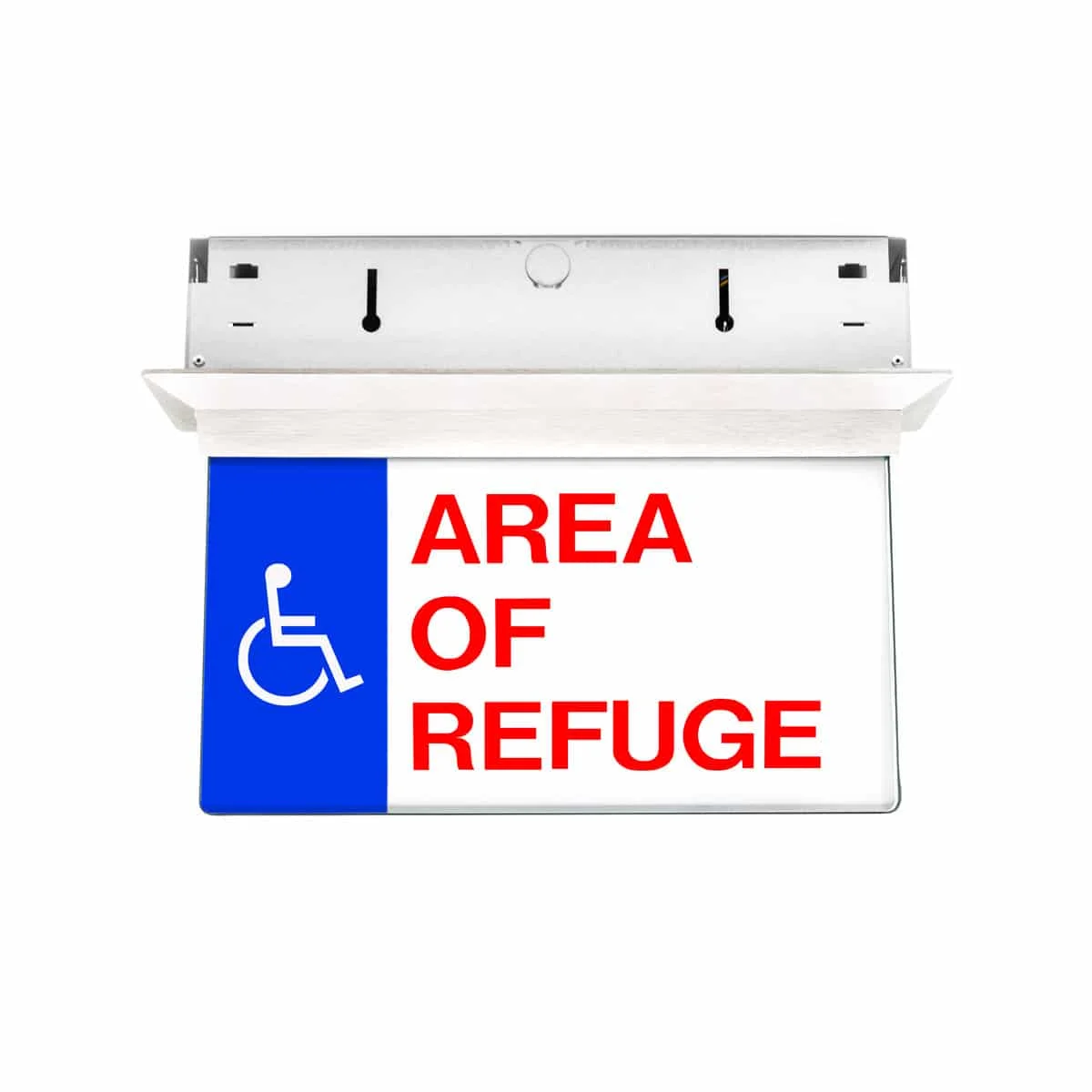

The ELTCG Elite Edge-Lit Exit Sign with Custom Graphics comes with a standard AC battery or a UL listed Ni-Cad battery backup that provides a 3-hour run-time and is available with your choice of custom graphics. The die-cast aluminum housing is constructed with a “Snap-in Lens” for easy installation and is compatible with the LPDCREM and TLREM2 remote exit signs. The ELTCG features a sealed external momentary test switch and a dual diagnostic LED indicator which displays the battery status. Low-profile recessed models are Type IC rated and designed with hinged springs to conceal the mounting hardware. High visibility self-adhesive chevrons are NFPA-Type and are universal field installable. Several frame colors and letter color choices are available, as well as multiple mounting options.
