DCL

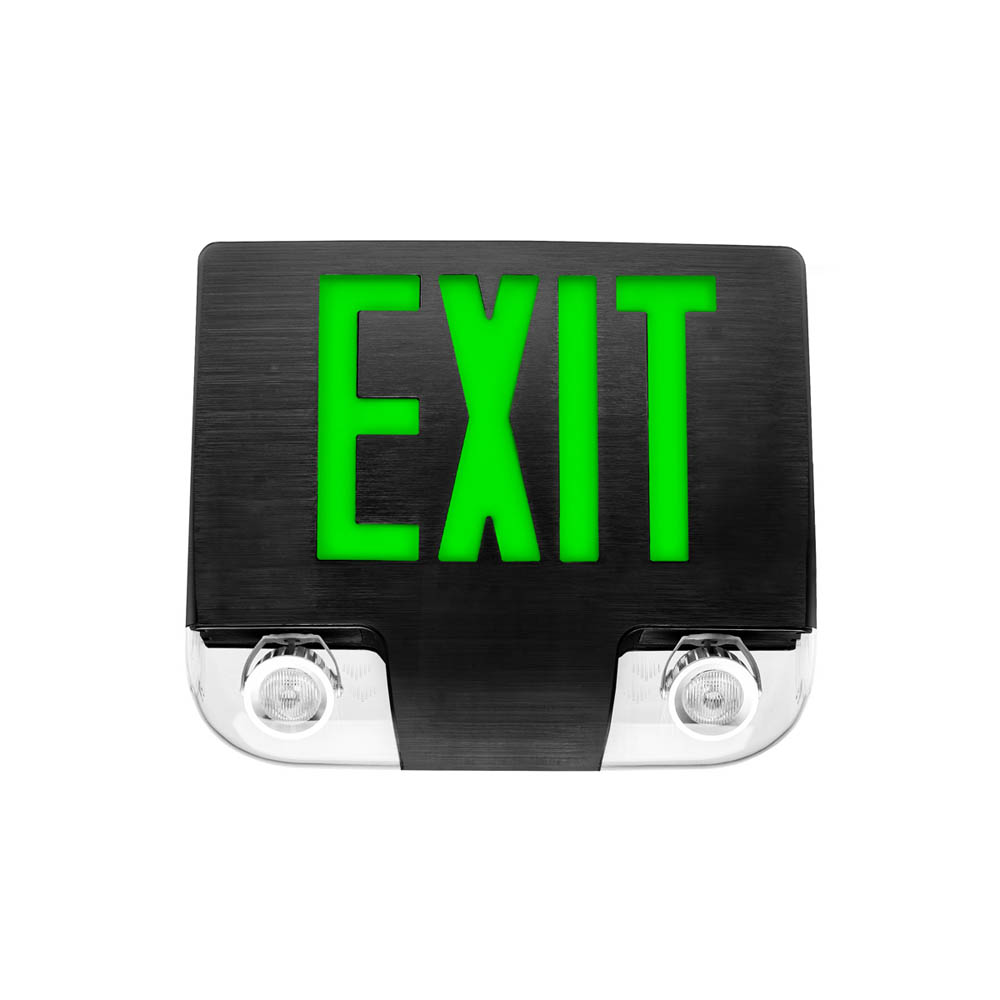

Die-Cast LED Exit & Emergency Combo

Lettering with ultra-bright, energy efficient, long life red or green LED.

3W emergency lamp heads with high performance, premium grade, ultra-bright white LED.

Charge rate/power β€œON” LED indicator light and push-to-test switch for mandated code compliance testing.

  • Construction
  • Premium-grade, extruded aluminum housing. Available in black or white powder-coat finishes.
    Arrows
  • Field selectable knockout chevron directional indicators
    Weight
  • 7 lbs
  • Approvals
  • UL 924
  • UL Listed for Damp Location
  • CEC Title 20 Compliant
  • NFPA Life Safety Code 101
  • NFPA 70-NEC
  • OSHA

Product Details

Clearly visible exit signs and emergency lighting help direct people towards safety. In the event of an emergency, lighted exit signs help protect individuals by illuminating the emergency exits and allowing patrons to leave the facility safely. Exit signs and emergency lighting also provide first responder assistance by clearly illuminating doorways as they navigate through a building. Keeping employees and patrons safe is the responsibility of building owners. Properly illuminated emergency exit signs and emergency lighting are vital components of any emergency preparedness plan.

The DCL Die-Cast LED Exit & Emergency Combo features high-performance, ultra-bright white LED emergency lamps. Premium-grade, die-cast housing is available in back or white powder-coat finishes. This combination exit/emergency unit features an internal solid-state transfer switch that automatically connects the internal battery to the LED board and the LED lamp heads for a minimum of 90-minute emergency illumination. The DCL includes an 8.4V long-life, maintenance-free, rechargeable Ni-Cad battery with a fully automatic solid-state, two-rate charger that recharges a discharged battery in 24 hours. This unit is UL listed for damp locations.
