ELH
120-360 Watt Emergency Light
High capacity models support total loads up to 360 watts or provide for extended discharge periods
24 volt units provide for reduced voltage drops over longer cable runs
UL listed 90 minute run-time
- Construction
- 20 gauge steel cabinet
- Durable, white powder-coat finish
- Temperature Rating
- From 50°F to 113°F
- Approvals
- CSA-US listed
- Meets or Exceeds UL 924 standards
- NFPA 101 Life Safety code
- NFPA 70-NEC
- OSHA
Product Details
Emergency lighting systems provide necessary illumination for facility occupants to access safe passage from a structure when standard lighting fails. Battery-supported emergency lighting illuminates the quickest and safest route to exit a building during a power failure. Building codes require that stairways, corridors, and egress points be lit in the event of a power failure.

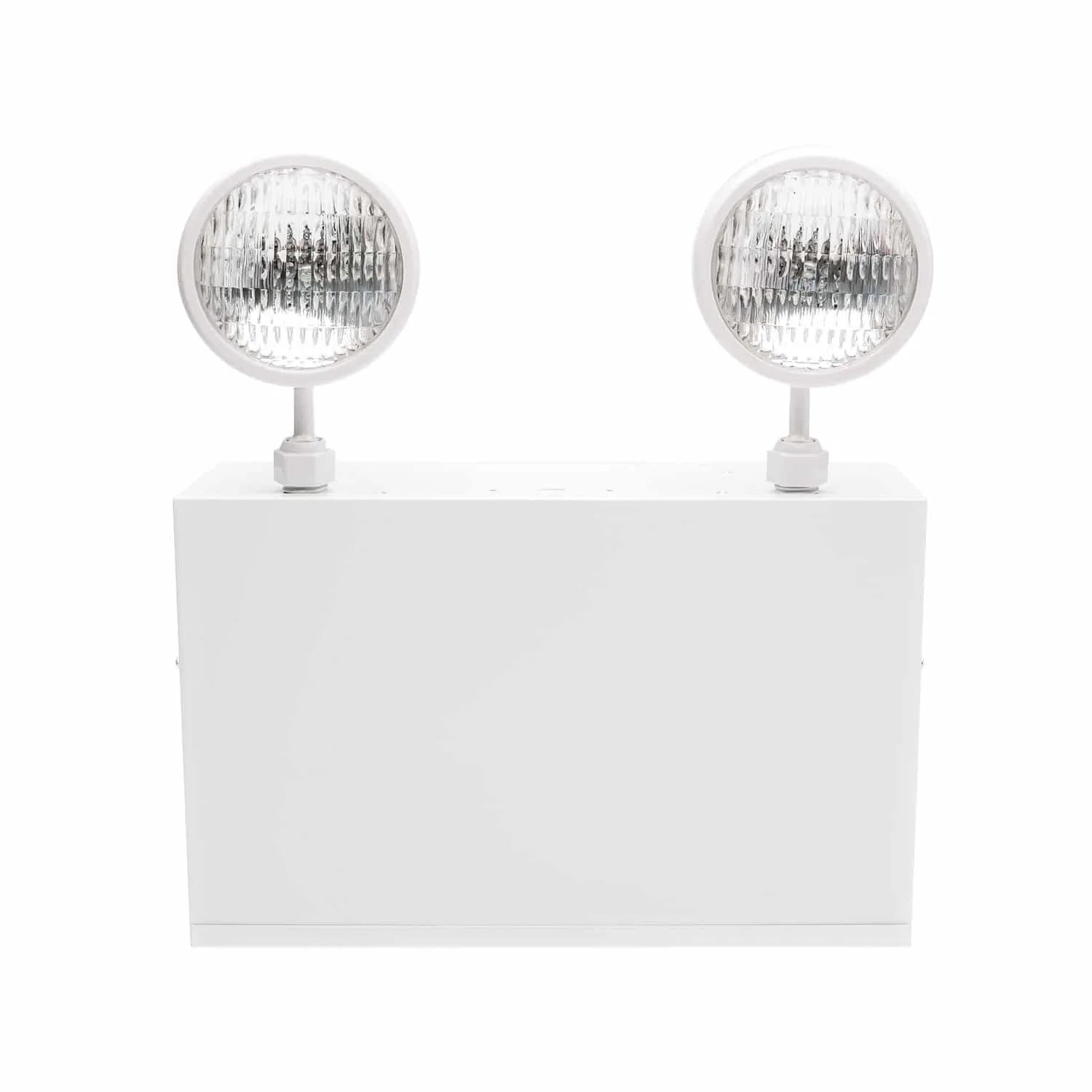

The ELH 120-360 Watt Emergency Light features a 20 gauge steel cabinet with a durable, white powder-coat finish. This high-capacity model supports total loads of up to 360 watts or provides for extended discharge periods and has a unique locking twist-collar that securely holds the lens for quick and easy re-lamping. The ELH provides 24-volt units for reduced voltage drops over longer cable runs and can power multiple remote heads. A maintenance-free, sealed Lead Calcium battery or a Nickel Cadmium battery is included in this unit with short circuit battery protection. Brownout detection ensures emergency operation during periods of low-line voltage, and a line latch prevents the discharge of the battery during installation. The ELH provides reliable performance and has a UL-listed 90-minute run-time.
