PHL

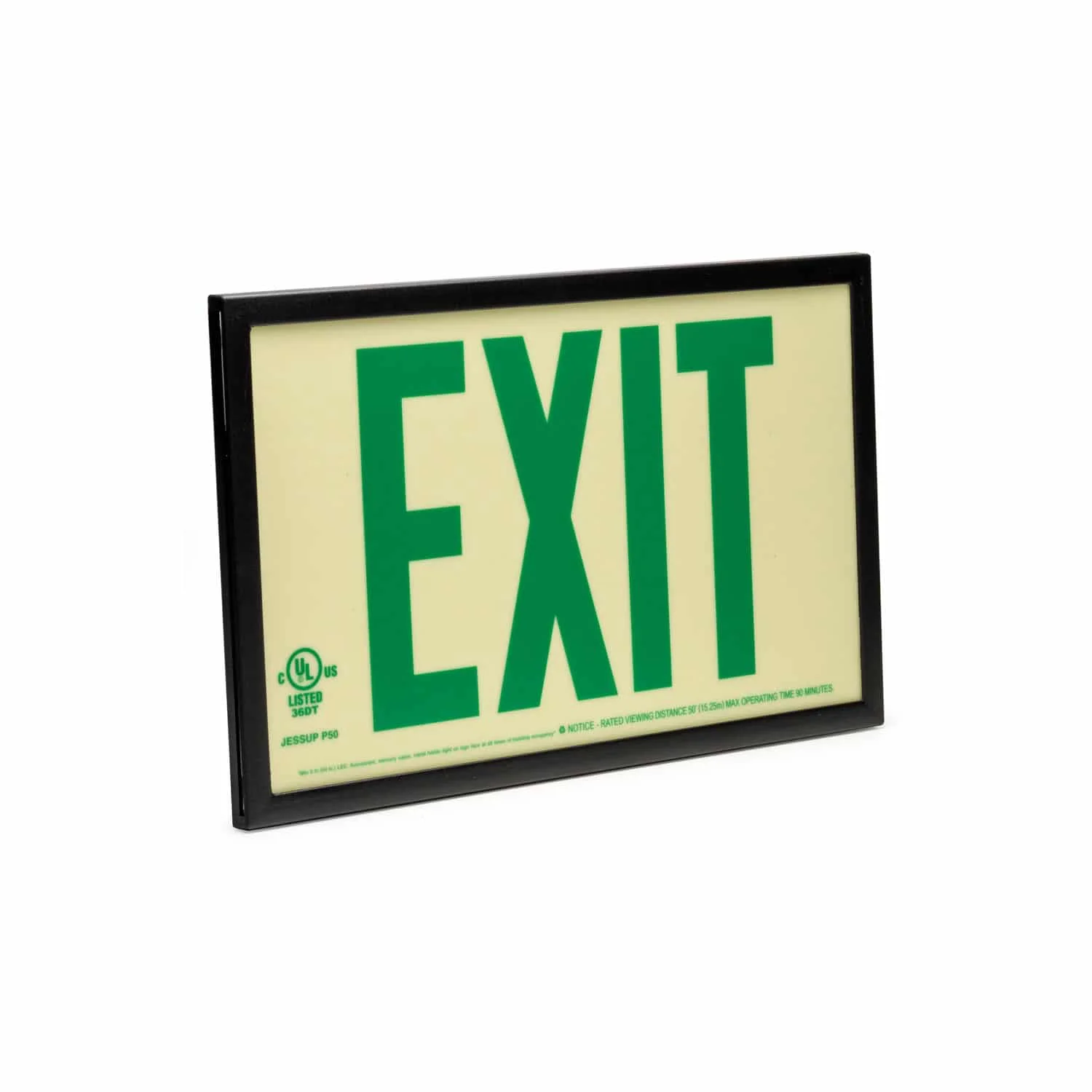

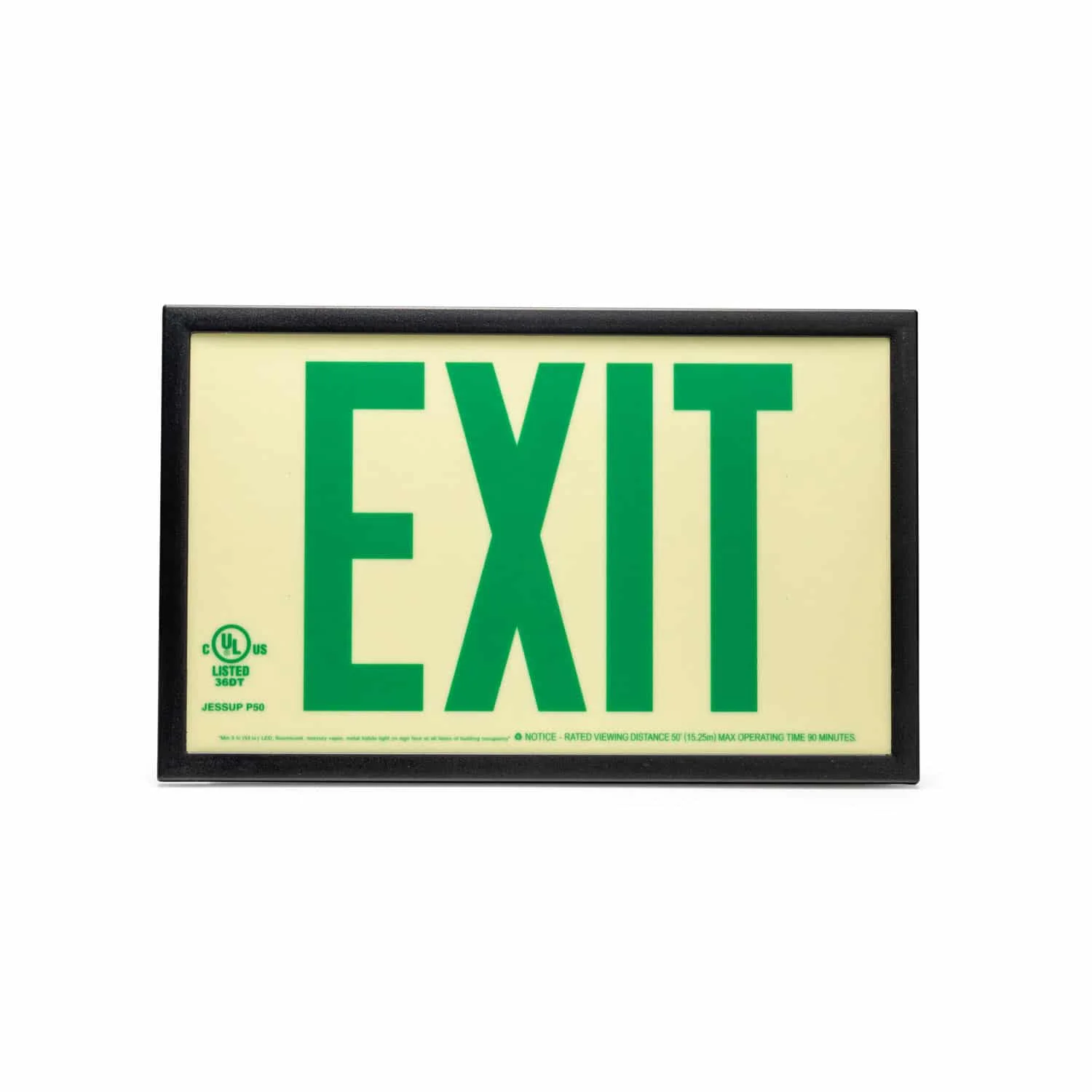

Thermoplastic Photoluminescent Exit Sign
Activation requires only 5 foot-candles (54 lux) of unfiltered fluorescent light for 60 minutes (must be externally illuminated during normal building occupation).
Universal mounting is standard.
No electrical connections are needed for operation.
Available Downloads
- Construction
- Thermoplastic frame
- Strontium oxide aluminate photoluminescent pigment molded into a rigid fire/flame-resistant PVC sheet.
- Letters
- 6.0” high; 0.75” stroke
-
Arrows
- NFPA-type, universal, field installable, self-adhesive chevron.
- Approvals
- UL 924
- NFPA 101 Life Safety Code
- NFPA 70-NEC
- OSHA
Product Details
Above doors and in hallways around the globe, exit signs typically blend into the scenery in offices, stores, and nearly all public facilities. But in an emergency, clearly illuminated exit signs save lives by communicating the route of safe escape out of a building. These lighted signs also guide first responders as they navigate through unfamiliar structures. Building safety codes require installing reliable illuminated exit signs that are visible at all times. The safety of patrons and employees should be the top priority of every business, company, and landlord. Properly illuminated emergency exit signs are a vital component of any emergency preparedness plan.
The PHL Thermoplastic Photoluminescent Exit Sign features a durable extruded aluminum frame for fast and easy installation. The PH exit sign is non-electrical and constructed with a photoluminescent pigment molded into the rigid fire-resistant PVC sheet. Activation requires only five foot-candles (54 lux) of unfiltered fluorescent/LED light for 60 minutes (must be externally illuminated during normal building occupation). The maintenance-free PHL is UL 924 listed and offers standard universal wall mounting.
