LTP

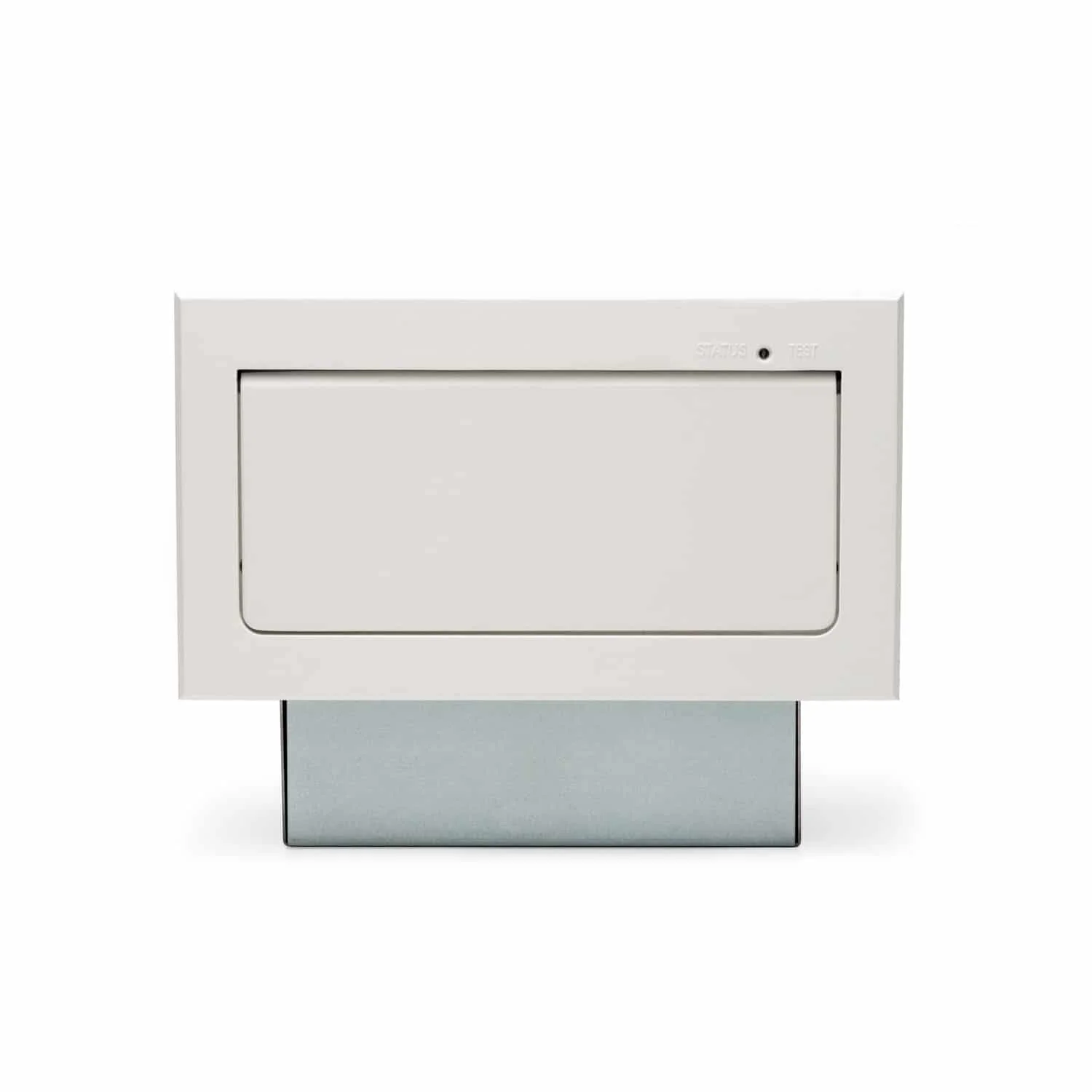

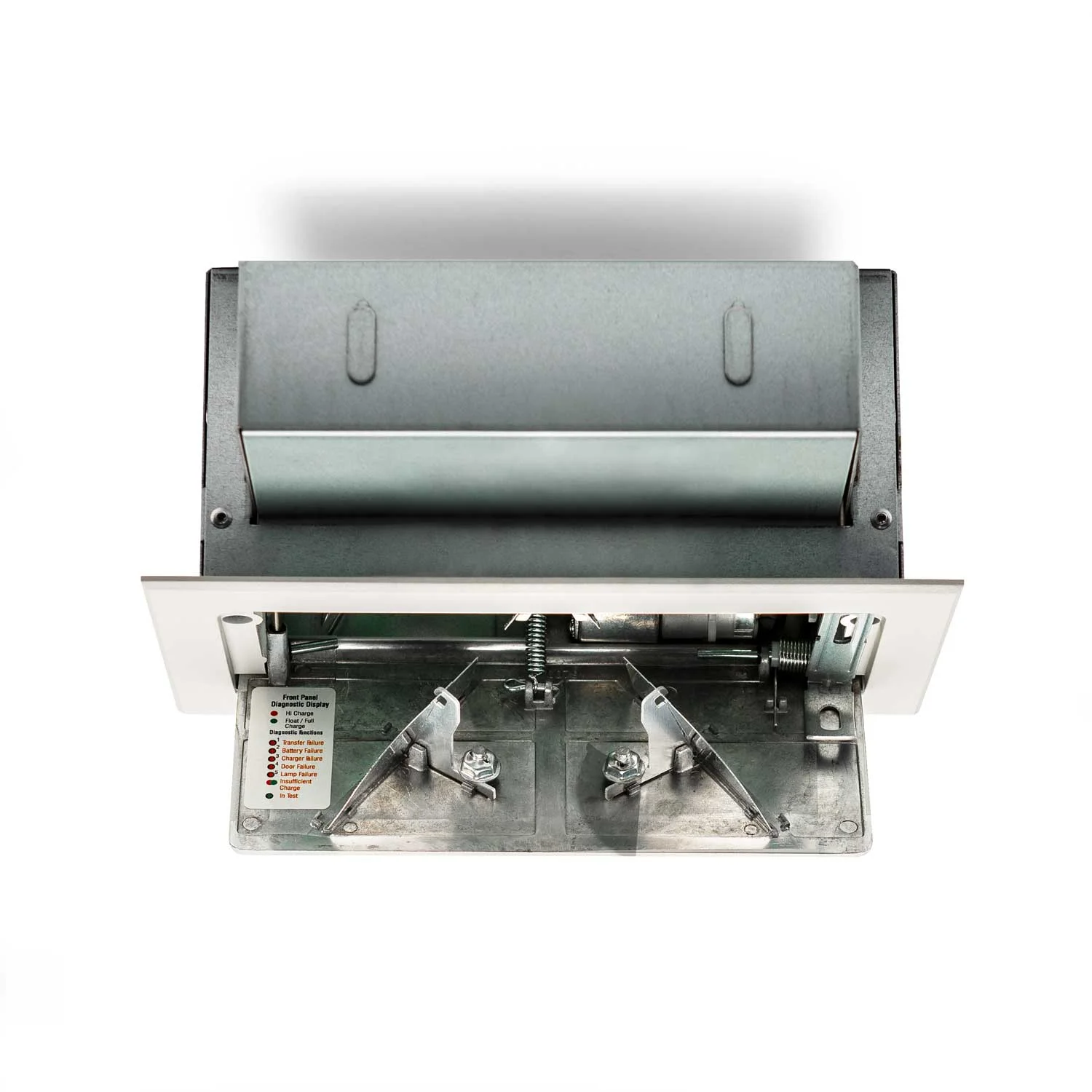

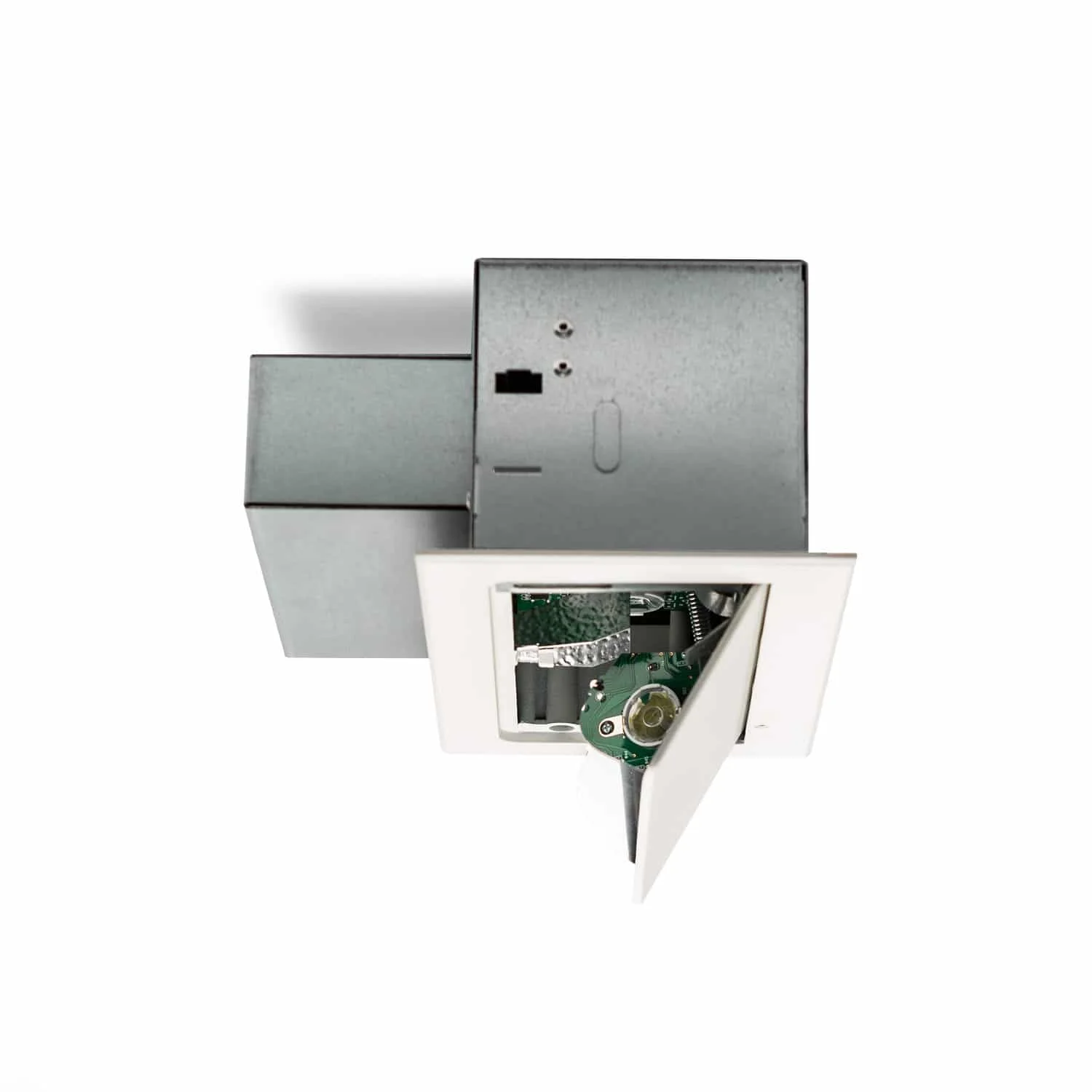

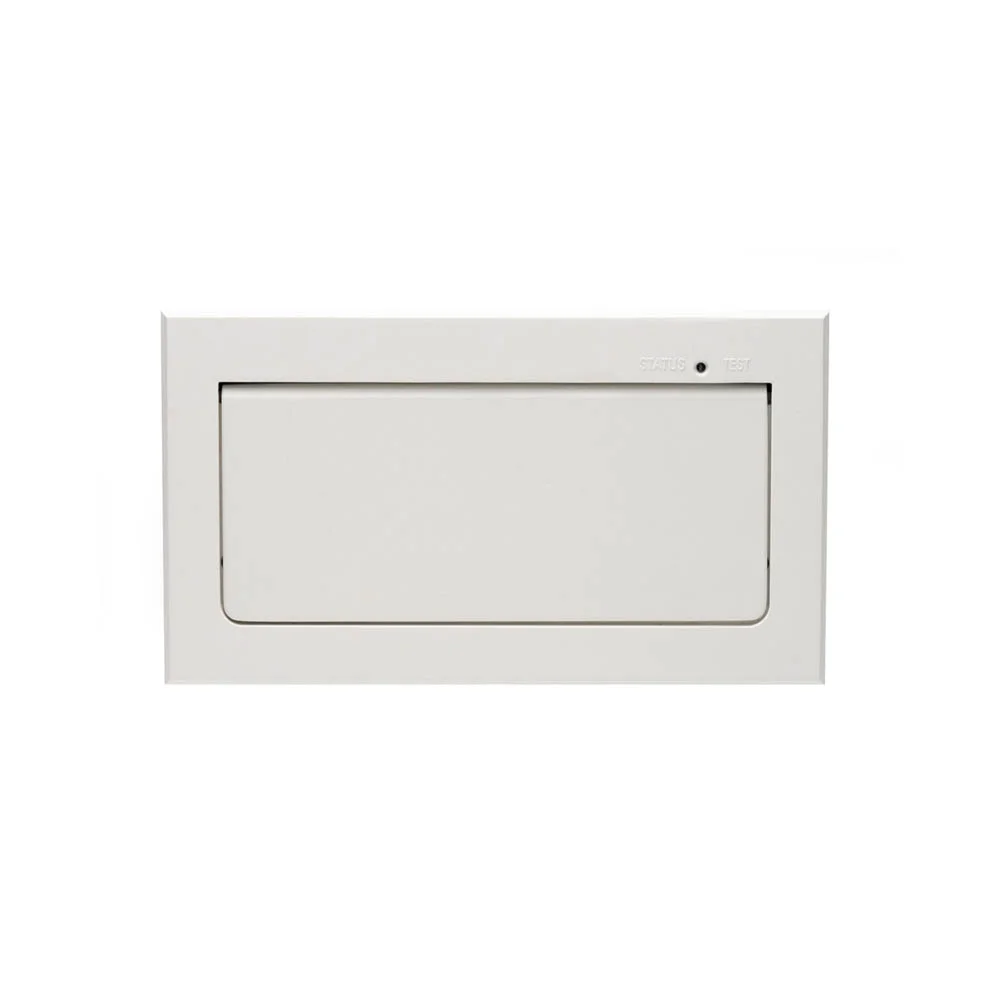

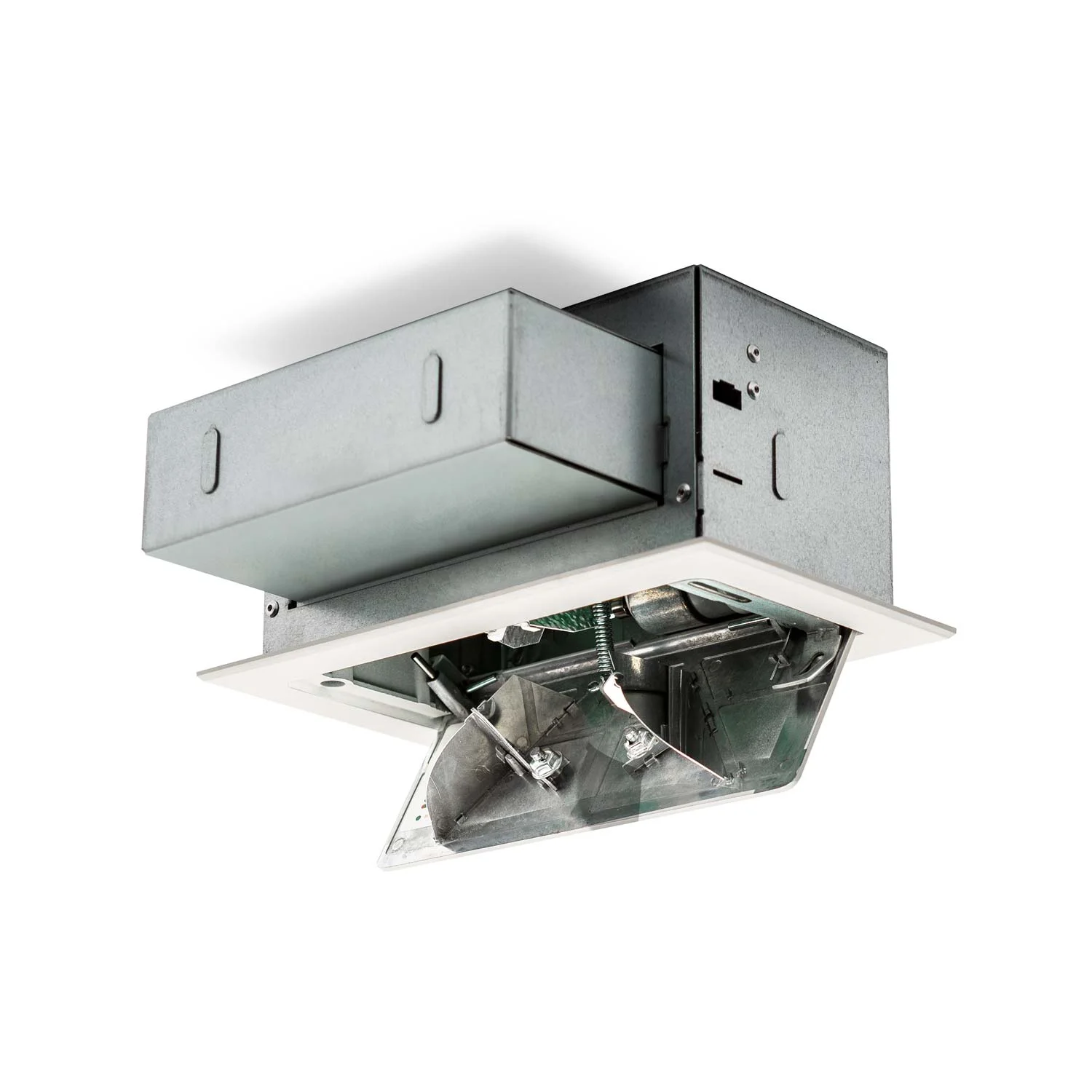

LED Low Level Recessed Emergency Light
This innovative emergency light mounts just 18 inches above the floor and illuminates for up to 50 feet with center-to-center spacing.
More effective in illuminating the path of egress than traditional ceiling or wall-mounted emergency lights.
Fully self-contained emergency light that can be recessed into walls.
Available Downloads
- Construction
- Textured, white powder coated, die-cast zinc frame and door
- Spring latch lamp holders
- No external mounting hardware
- Weight
- 8 lbs
- Approvals
- UL 924
- NY City approved calendar #48850
- NFPA 101 Life Safety code
- NFPA 70-NEC
- OSHA
- CEC Title 20 Compliant
Product Details
Emergency lighting systems provide necessary illumination for facility occupants to access safe passage from a structure when standard lighting fails. Battery-supported emergency lighting illuminates the quickest and safest route to exit a building during a power failure. Building codes require that stairways, corridors, and egress points be lit in the event of a power failure.
The LTP LED Low Level Recessed Emergency Light is more effective in illuminating the path of egress than the traditional ceiling or wall-mounted emergency lights. This fully self-contained emergency light can be recessed into walls and boasts a two-hour emergency run-time. The tamper-resistant design has no visible mounting hardware, which allows the unit to be painted or wallpapered to blend seamlessly with the surrounding architecture. The universal back box can be pre-shipped for pre-installation at the job site. This unit uses three high-output white LEDs with just 11 Watts of total load, providing up to 50.0’ on center spacing over a 4.0’ path of egress. Brownout sensing ensures emergency operation during periods of low line voltage, and a line latch prevents the unnecessary discharge of the battery during installation. A Lead Calcium or Ni-Cad battery is included.
