LPDC2-LW

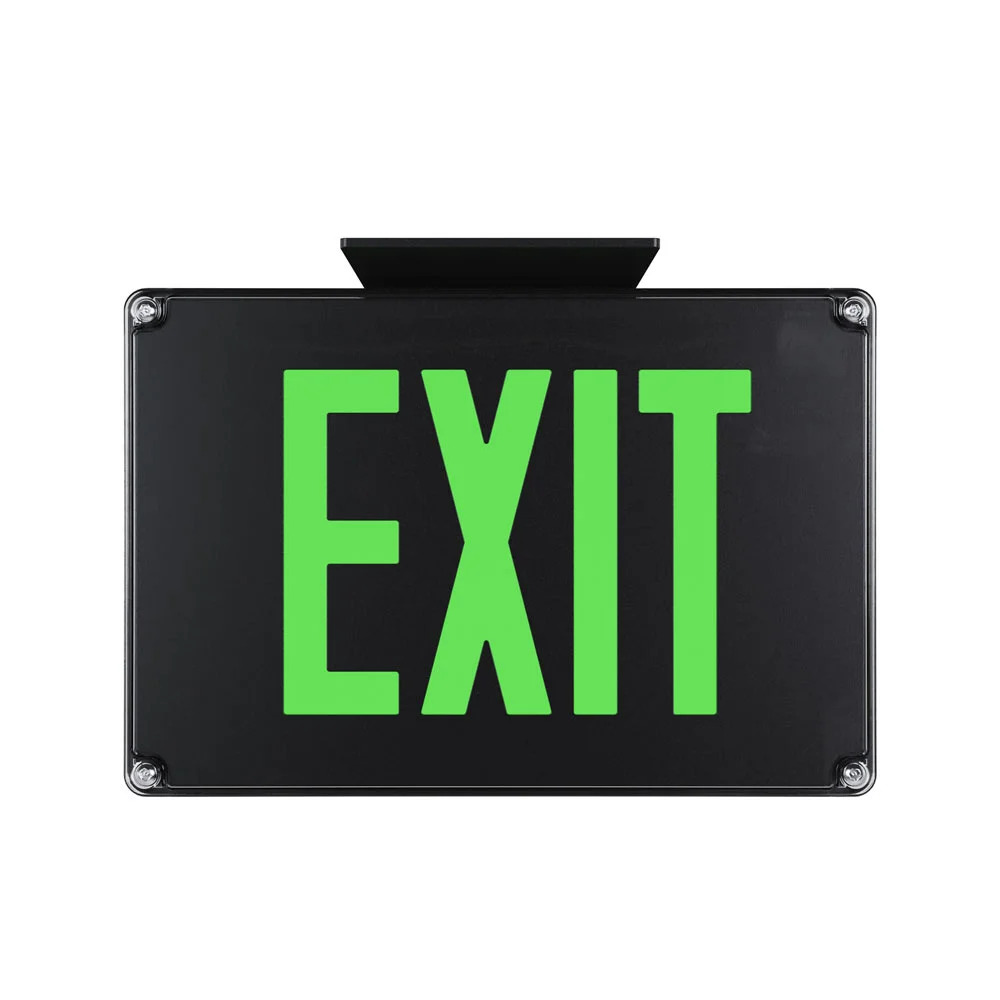

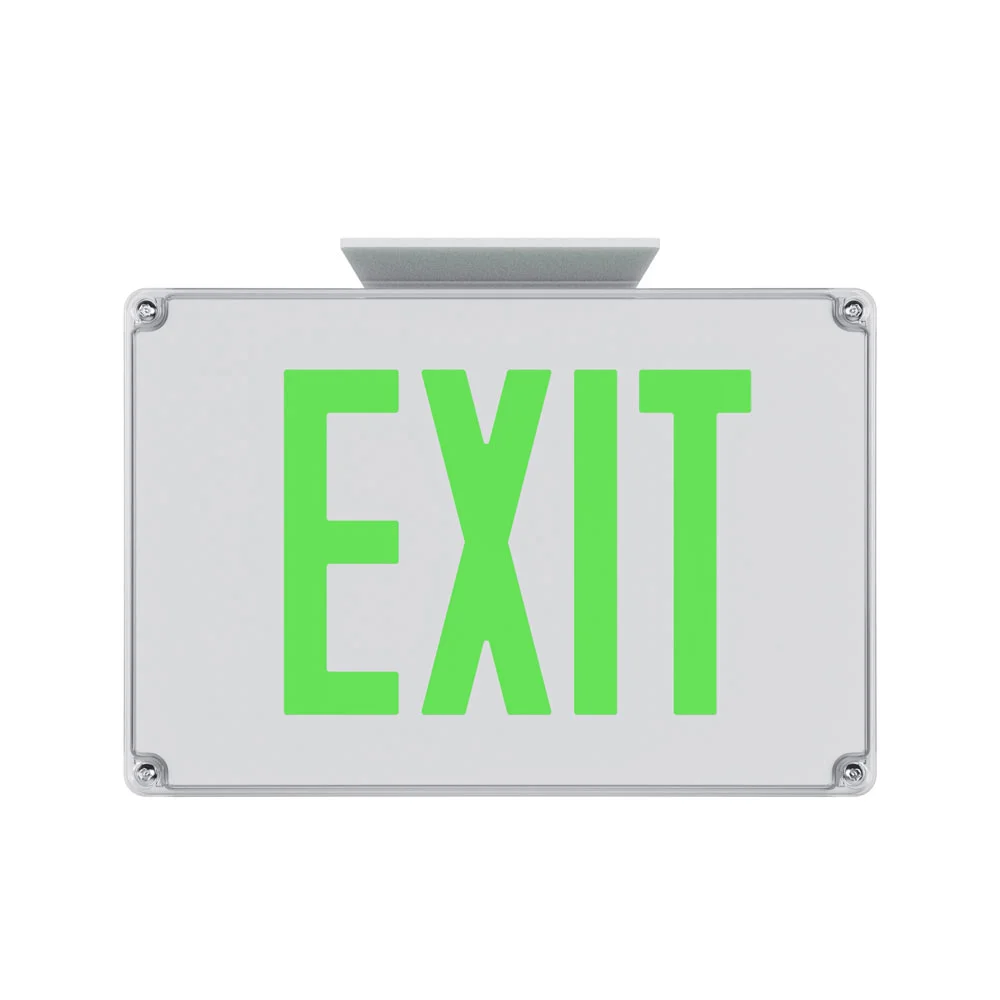

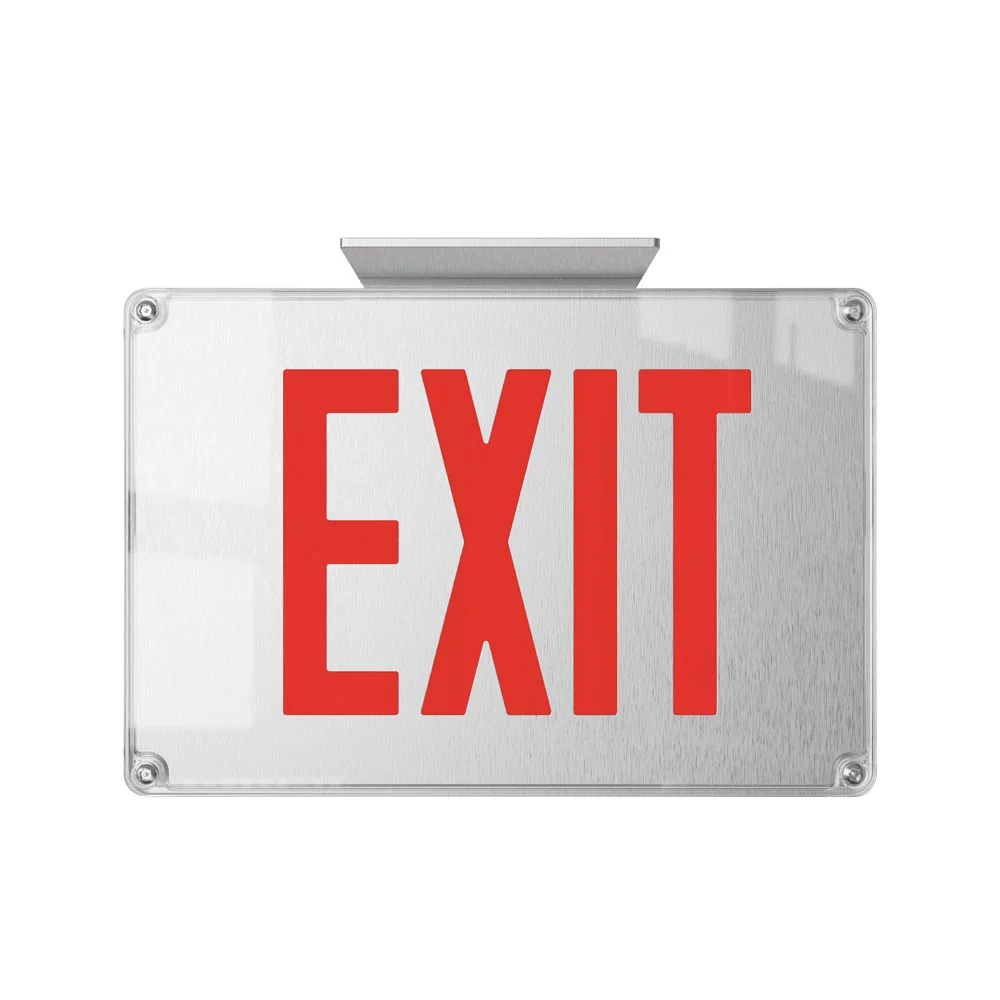

Wet Location Die-Cast Aluminum LED Exit Sign
100-foot viewing distance.
Full gasketed for NEMA 4X protection.
Vandal-resistant, clear UV-stabilized polycarbonate face secured with stainless steel screws.
Available Downloads
- Construction
- Injection-molded internal cavity reflector and heavy-duty pressure die-cast aluminum alloy ensure easy installation, maintenance, and even illumination.
-
Letters
- 6.0” high; 0.75” stroke
- NFPA type, universal field selectable chevrons.
- Temperature Rating
- Standard: 50ºF to 104ºF (10º C to 40ºC)
- With HX Option: -40ºF to 104ºF (-40ºC to 40ºC)
- Approvals
- UL 924 Listed to 100ft Visibility Distance
- CEC Title 20 Compliant
- NFPA 101 Life Safety Code
- NFPA 70-NEC
- OSHA
- NEMA 4X
- BAA Compliant
