EUG

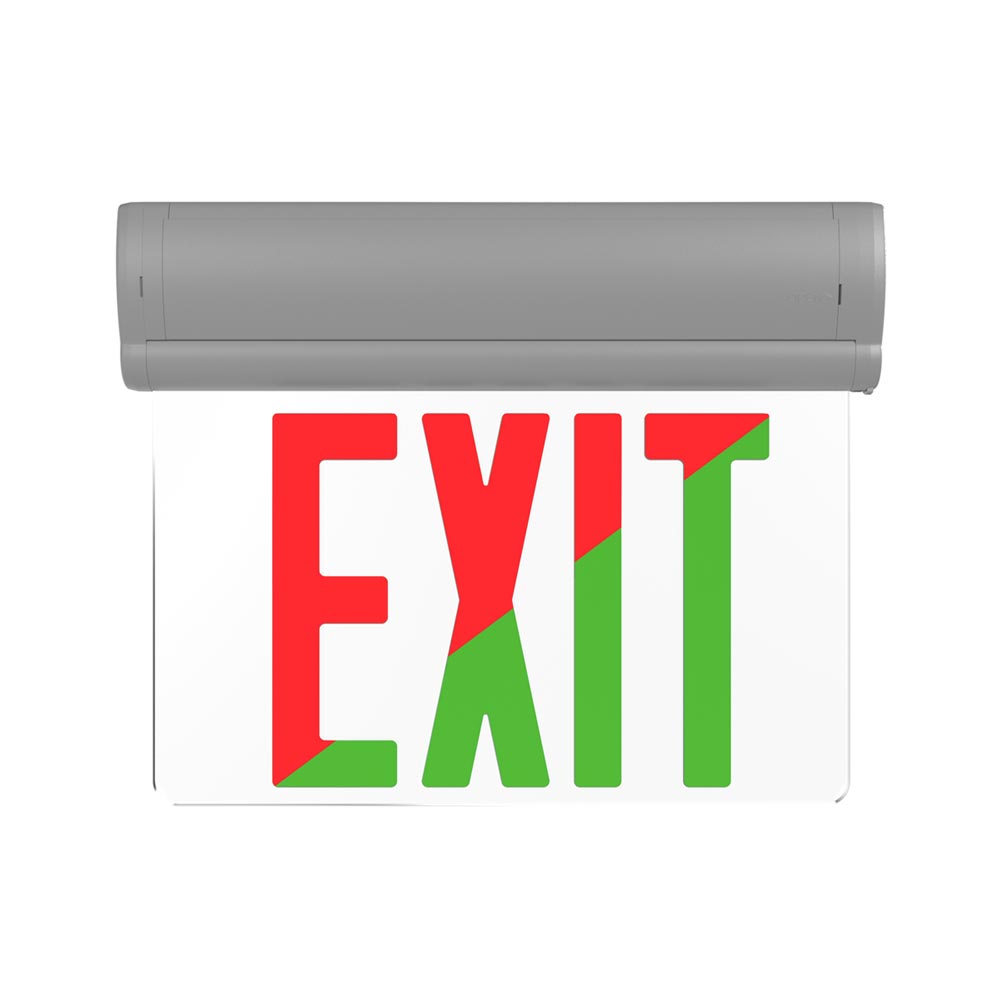

Universal Surface Mount Edge-lit LED Exit Sign

Super-bright LEDs with long life expectancy.

Suitable for damp locations.

Unique pivoting housing suitable for ceiling, wall, or end mount applications.

  • Construction
  • Attractive, low profile satin extruded aluminum with matching gray end-caps.
  • Clear acrylic, edge-lit lens is provided for single faced signs while mirrored background is standard for double faced signs.
    Arrows
  • NFPA-Type, universal field installable, self-adhesive chevrons
  • Letters
  • 6” high; 0.75” stroke
  • Approvals
  • UL 924
  • CEC Title 20 Compliant
  • NFPA 101 Life Safety Code
  • NEC NFPA 70
  • OSHA

Product Details

Above doors and in hallways around the globe, exit signs typically blend into the scenery in offices, stores, and nearly all public facilities. But in an emergency, clearly illuminated exit signs save lives by communicating the route of safe escape out of a building. These lighted signs also guide first responders as they navigate through unfamiliar structures. Building safety codes require installing reliable illuminated exit signs that are visible at all times. The safety of patrons and employees should be the top priority of every business, company, and landlord. Properly illuminated emergency exit signs are a vital component of any emergency preparedness plan.

The EUG Universal Surface Mount Edge-lit LED Exit Sign includes a low-profile satin extruded aluminum housing with matching gray end caps. A clear acrylic, edge-lit lens is provided for the single-face signs, and the double face signs include the standard mirrored background. The unique pivot housing is suitable for ceiling, wall, or end mount applications and is equipped with a push-to-test switch for mandated code compliance testing. The EUG exit sign includes a maintenance-free, long-life nickel cadmium battery for a minimum of 90-minutes of emergency illumination. This model offers multiple mounting options and a variety of frame color choices.
