Introducing

ELT2 Elite Edge-Lit Exit Sign

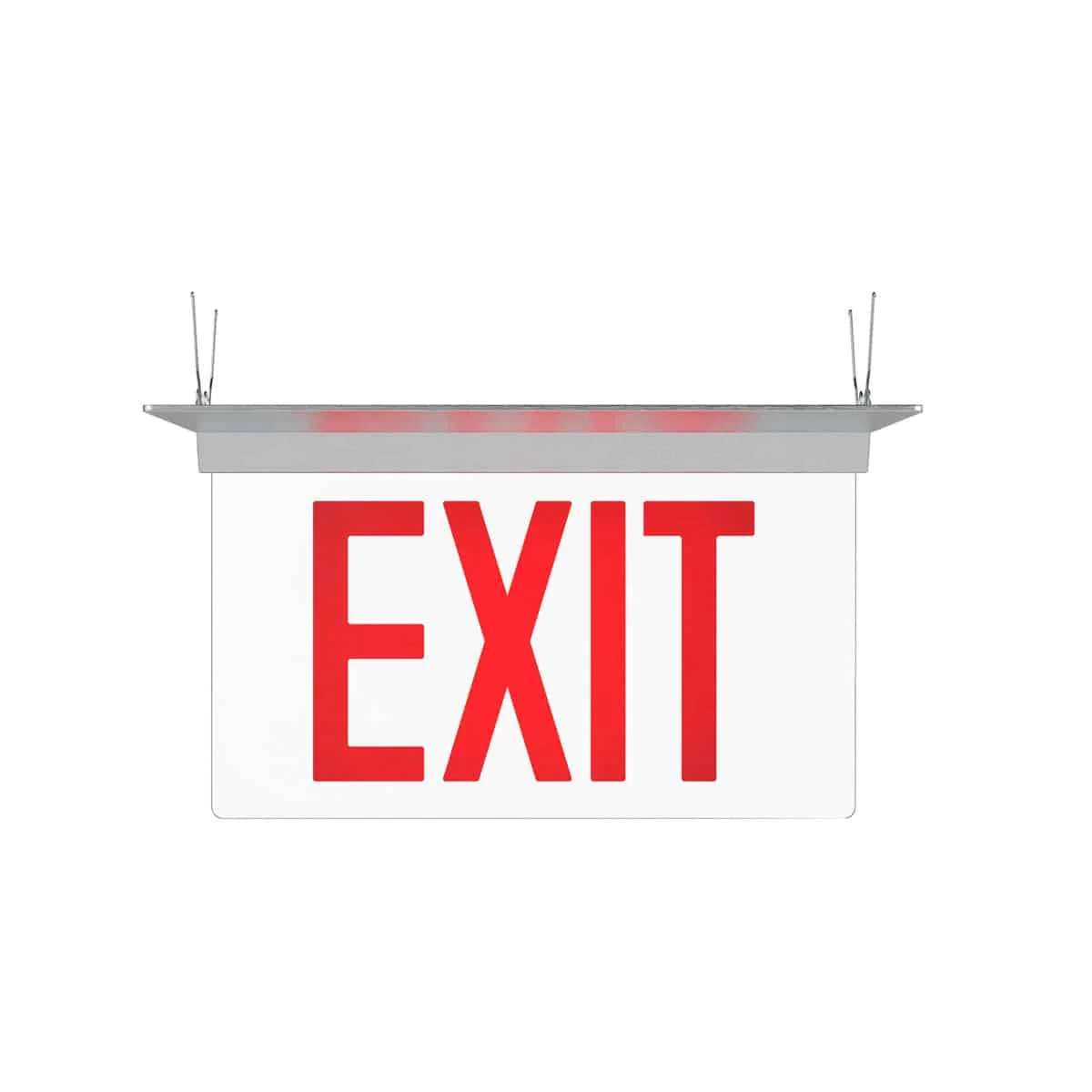

The new ELT2 Elite Edge-Lit Exit Sign is a maintenance free LED Light source with 25+ years life expectancy. Custom finishes and a laser formed, edge-lit lens make the ELT2 a beautiful and modern fixture.

The ELT2-HERO Elite Edge-Lit Exit Sign is a maintenance-free LED Light source with a 25+ years life expectancy.

Edge-Lit Exit Sign with Custom Legends & Graphics

Above doors and in hallways around the globe, exit signs typically blend into the scenery in offices, stores, and nearly all public facilities. But in an emergency, clearly illuminated exit signs save lives by communicating the route of safe escape out of a building. These lighted signs also guide first responders as they navigate through unfamiliar structures. Building safety codes require installing reliable illuminated exit signs that are visible at all times. The safety of patrons and employees should be the top priority of every business, company, and landlord. Properly illuminated emergency exit signs are a vital component of any emergency preparedness plan.

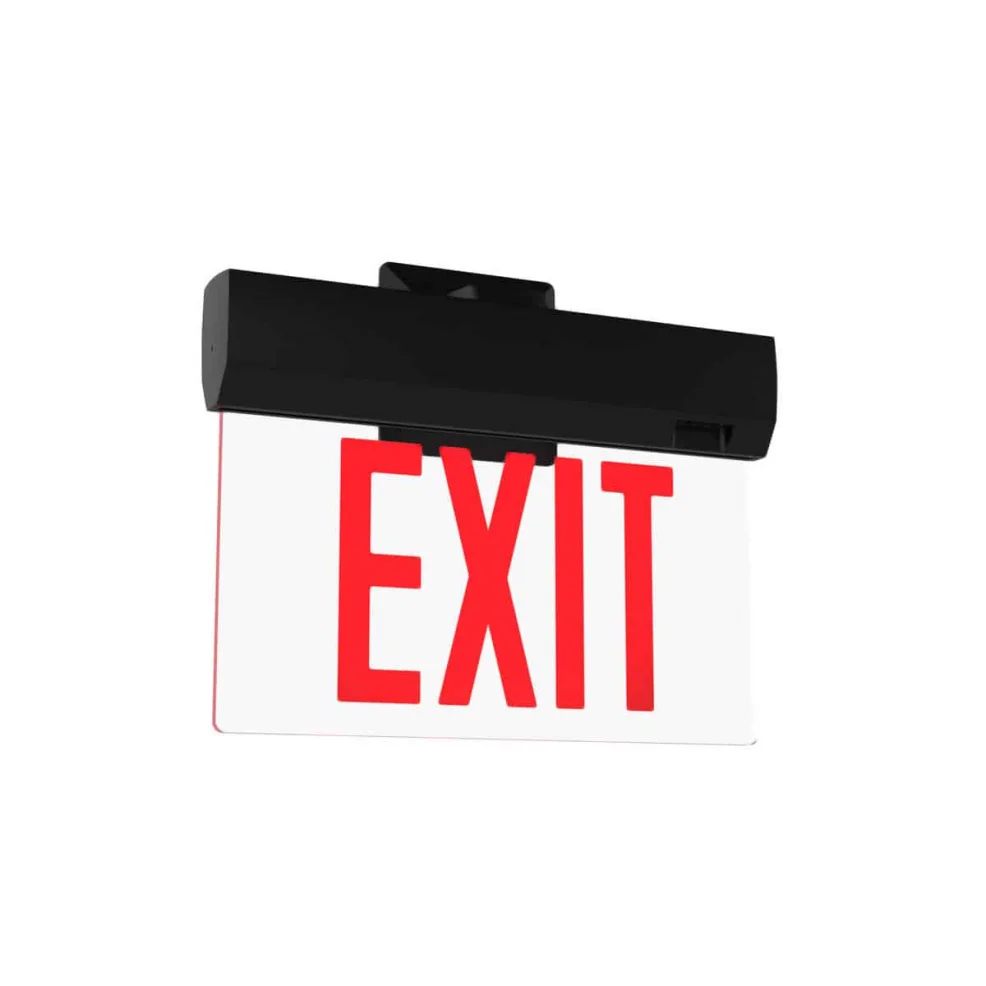

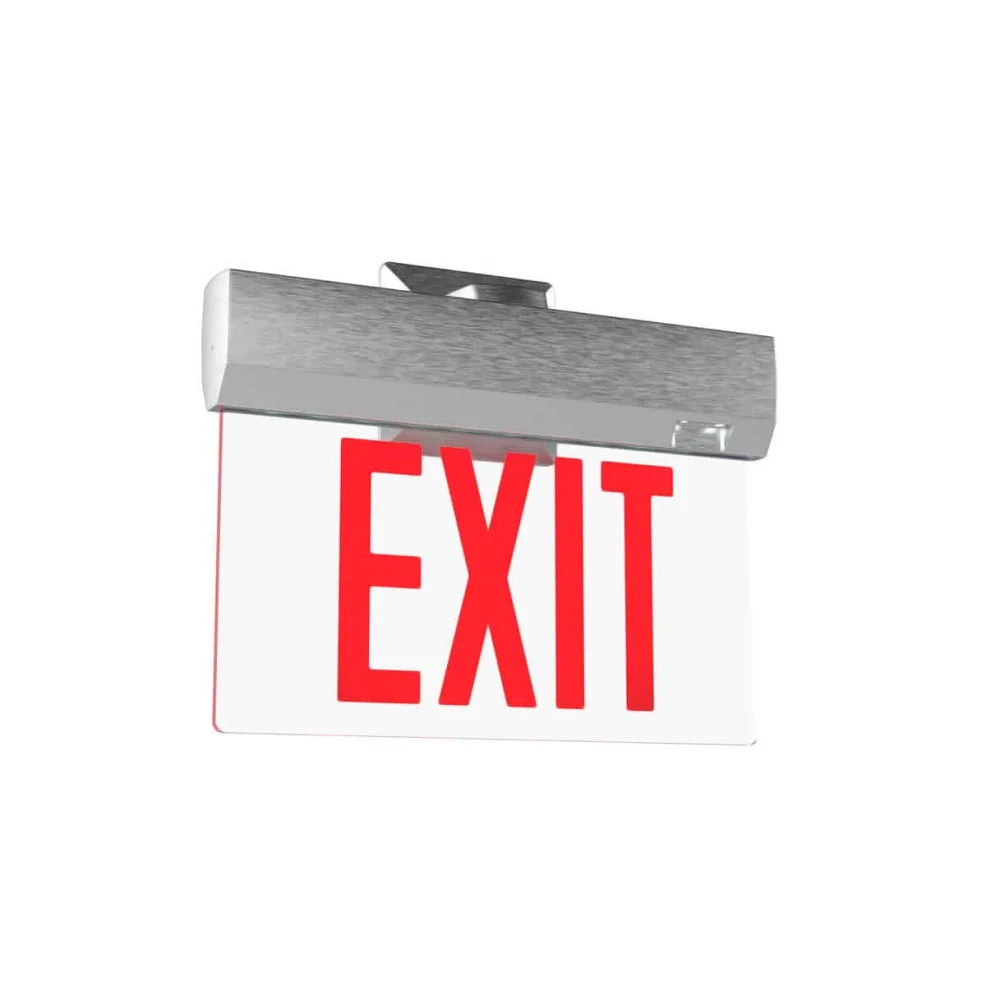

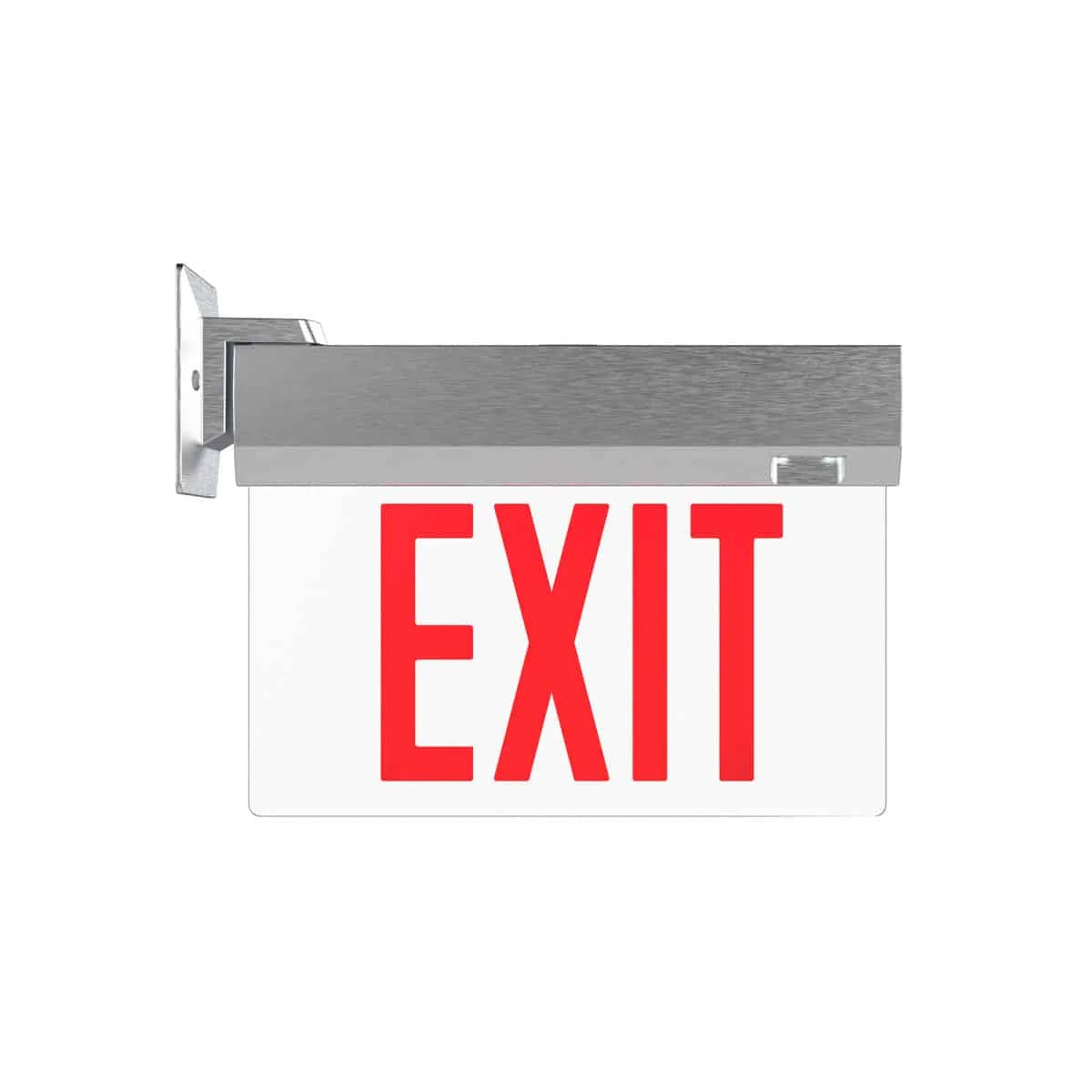

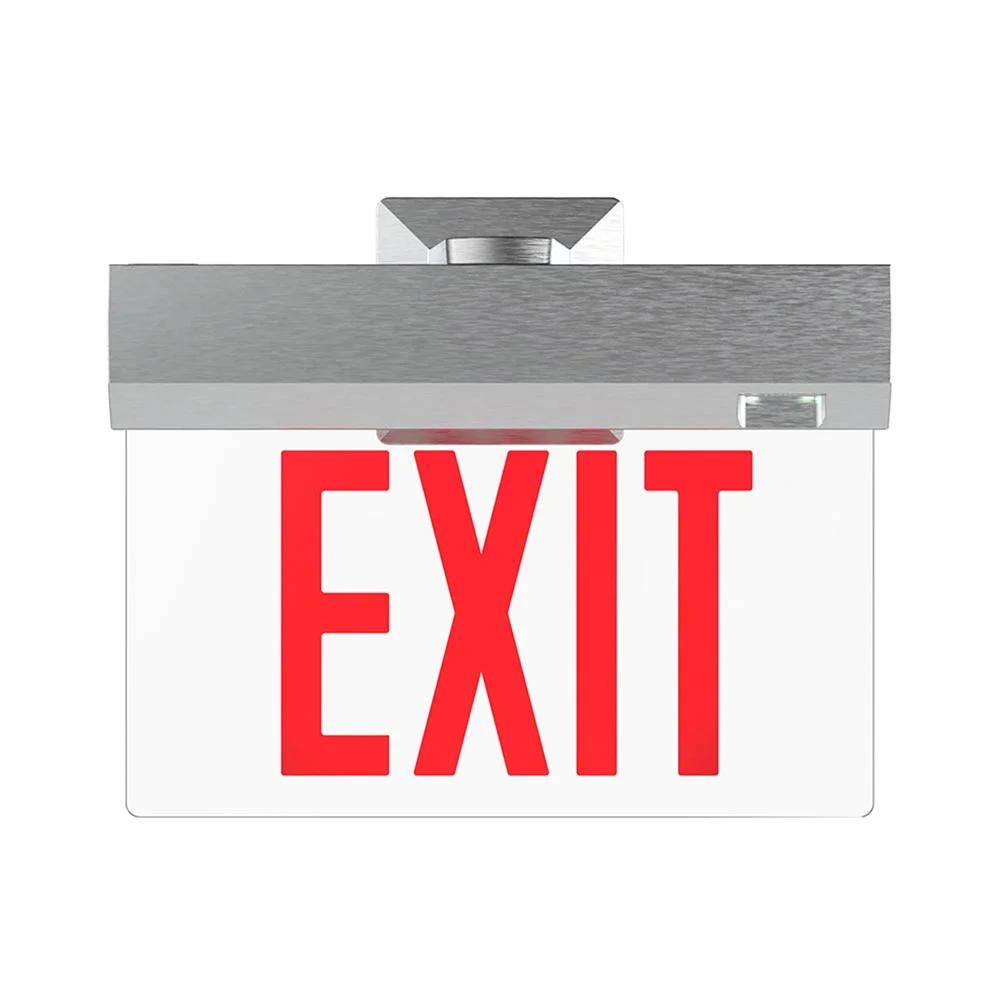

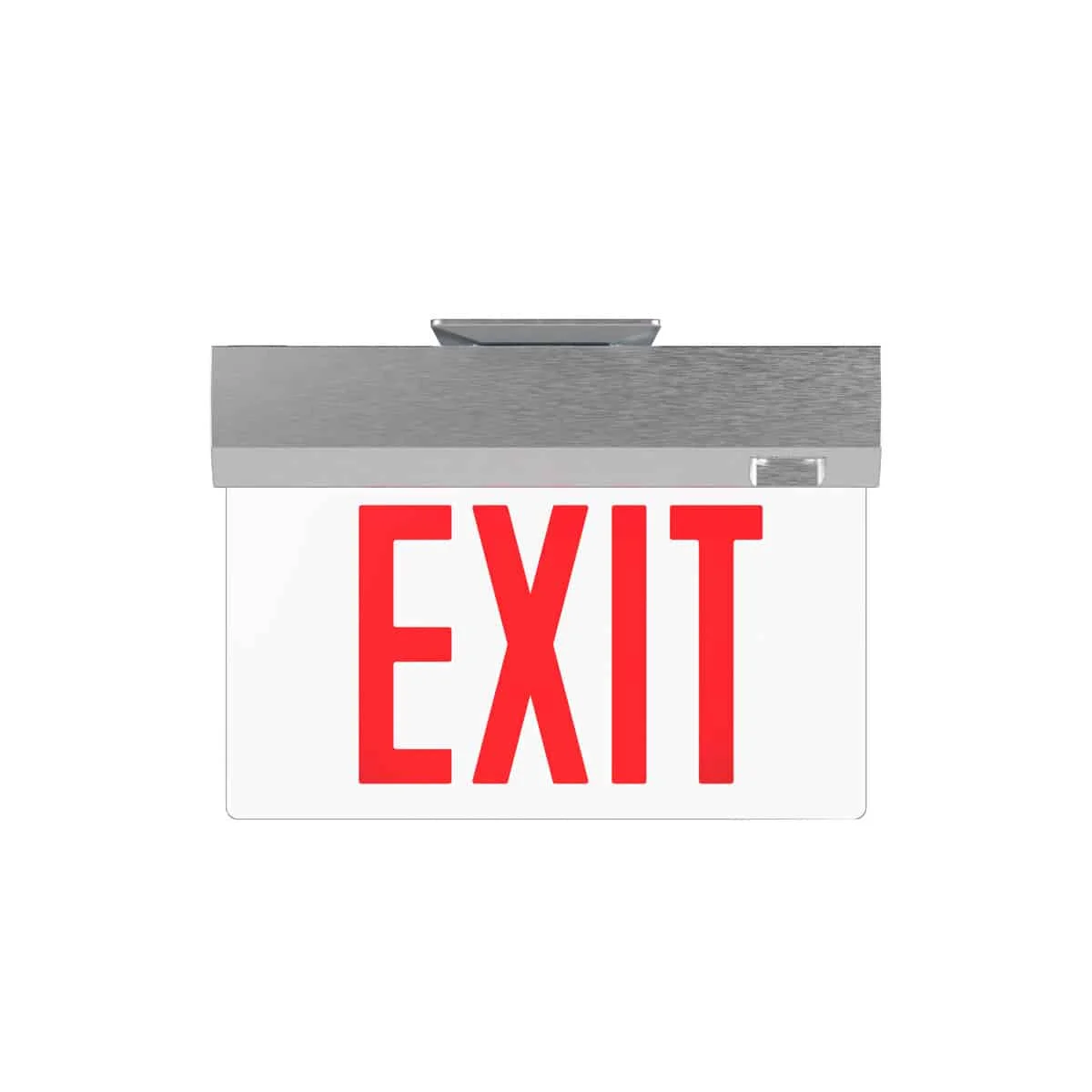

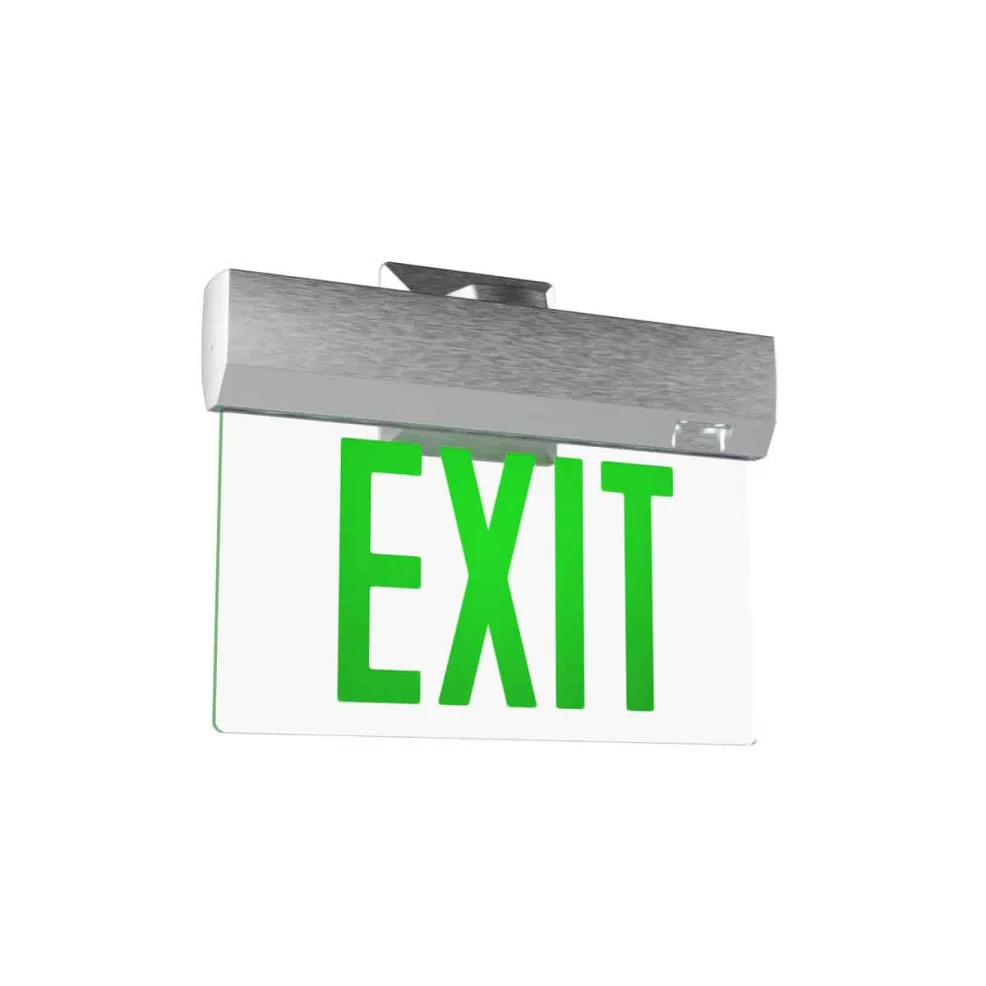

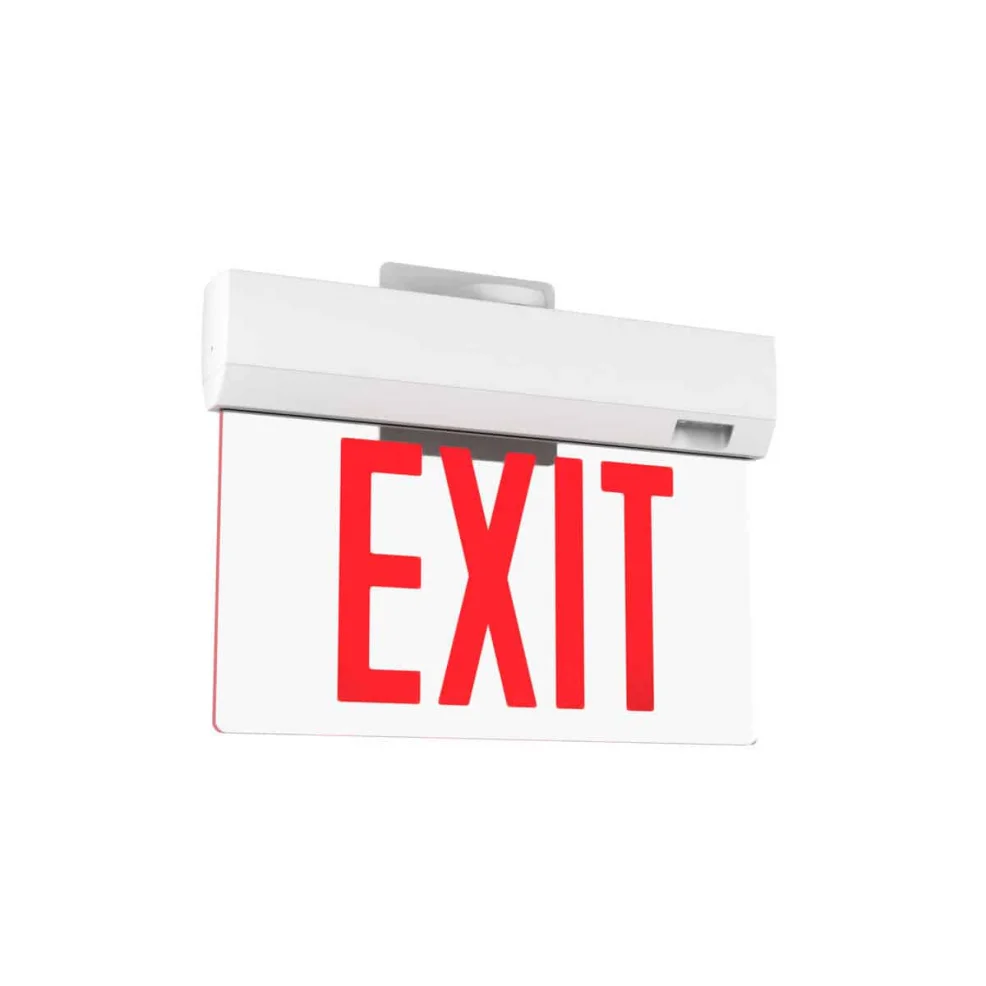

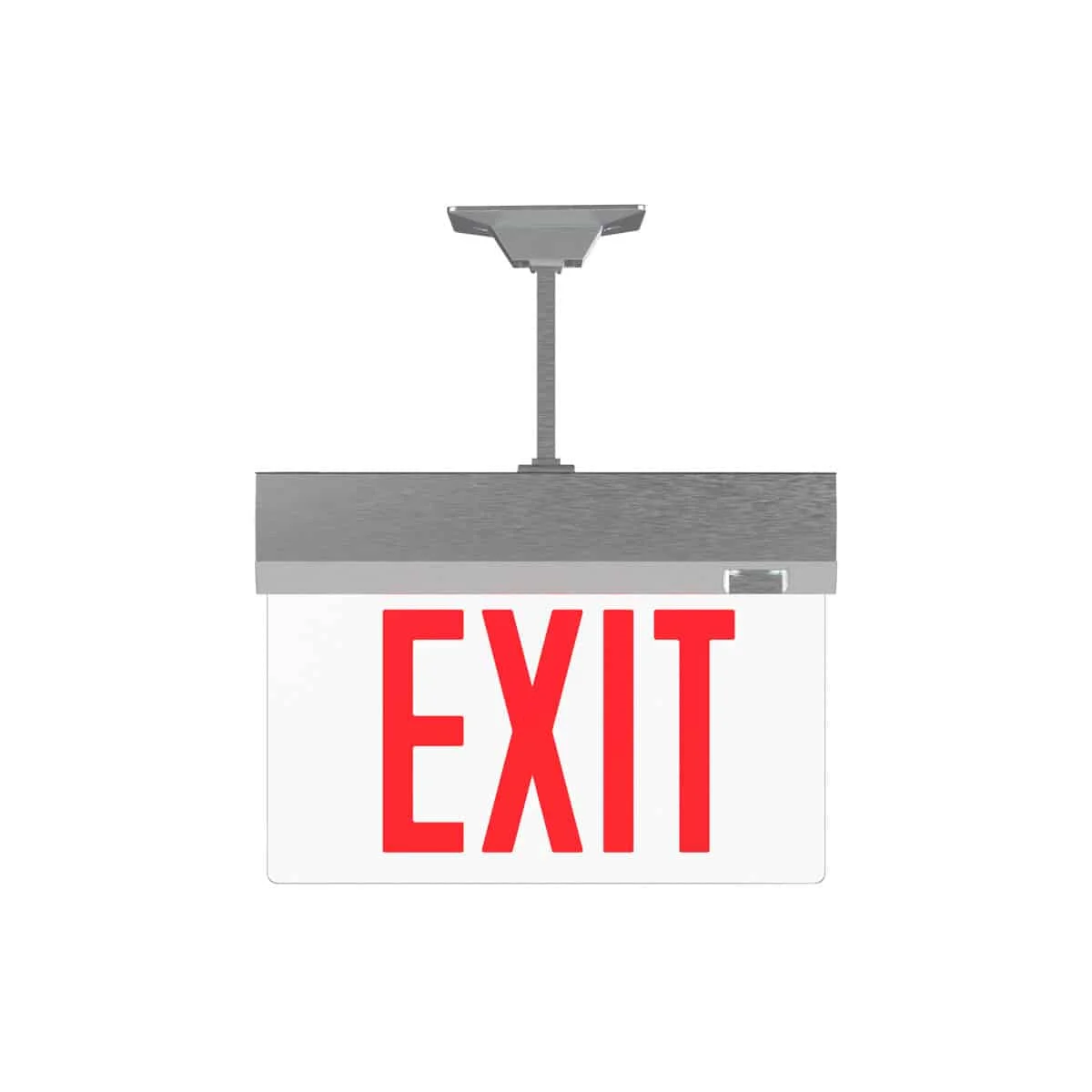

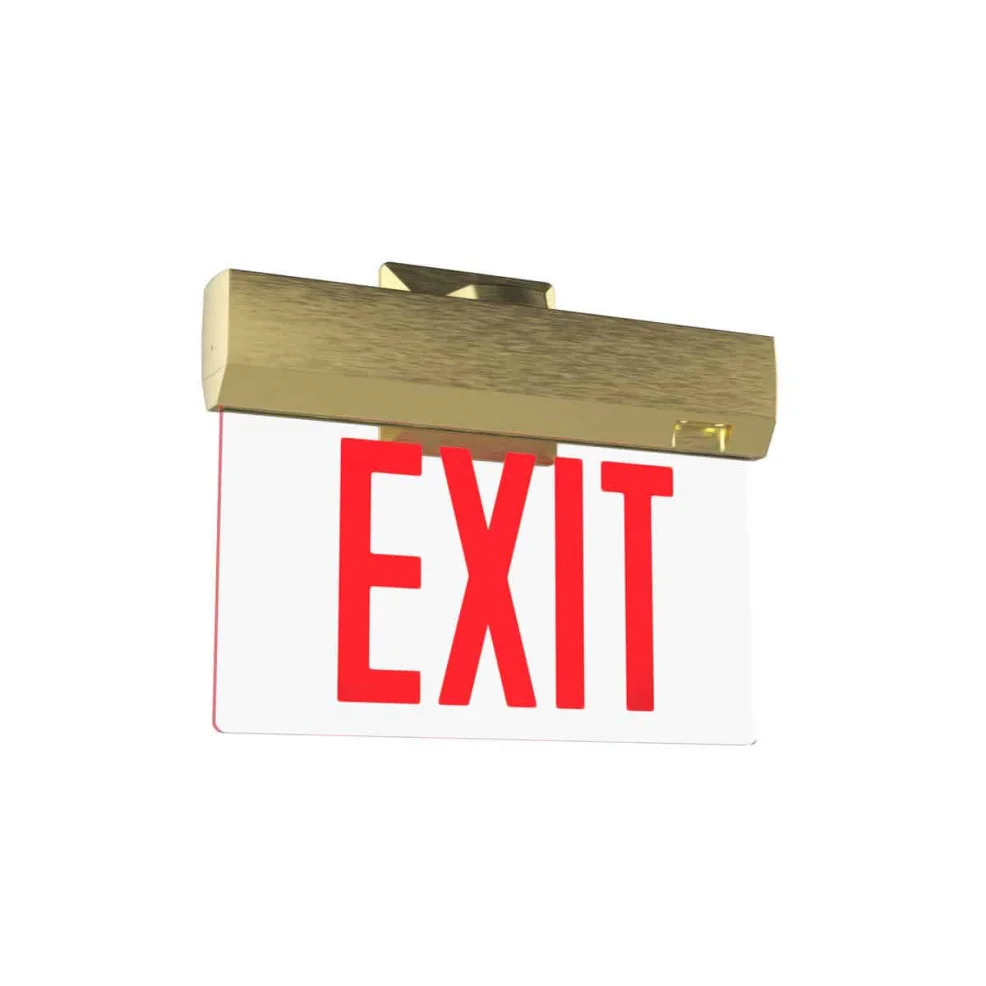

The new ELT2 Elite Edge-Lit Exit Sign is a maintenance free LED Light source with 25+ years life expectancy. The sign comes with a quality brushed aluminum sealed finish standard. Optional white, black, or brushed painted brass finishes are also available. The precision pressure die cast aluminum legend holder, trim and surface mount housing are complimented by a sleek contoured, crystal clear laser formed edge lit lens. Custom legends with white LED light source are available as well as a range of information signage or custom graphics. The ELT2 also delivers a refractive light guide engineered to optimize LED utilization and illumination uniformity, and all versions of the fixture feature fully integrated electronic components.

ELT2

Elite Edge-Lit Exit Sign

Spec grade with a universal surface mount option for simplified installation.

Premium long-life, high-temperature fused nickel cadmium battery with standard UL listed 3-hour run time.

Standard battery diagnostic system monitors battery status, detects cell failure, and issues an alert when there’s reduced capacity, indicating the need to replace the battery.

  • Construction
  • “Snap-in Lens” for easy installation.
  • Recessed back box can be pre-installed at job site.
  • Precision die-cast aluminum housing with a flawless, laser-formed acrylic legend.
  • Hinged springs allow for concealed mounting hardware on recessed models.
  • Recessed back box meets New York specifications.
  • Input Power
  • AC models: Red 1.5W; Green 2.3W
  • EM models: Red 2.5W; Green 3.0W
    Letters
  • 6.0” high; 0.75” stroke
  • Approvals
  • UL 924
  • CEC Title 20 Compliant
  • NFPA 101
  • NFPA 70
  • OSHA
  • Backbox is IC rated and meets NYC/City of Chicago Specifications.
  • FCC Title 47 Part 15, Subpart B
