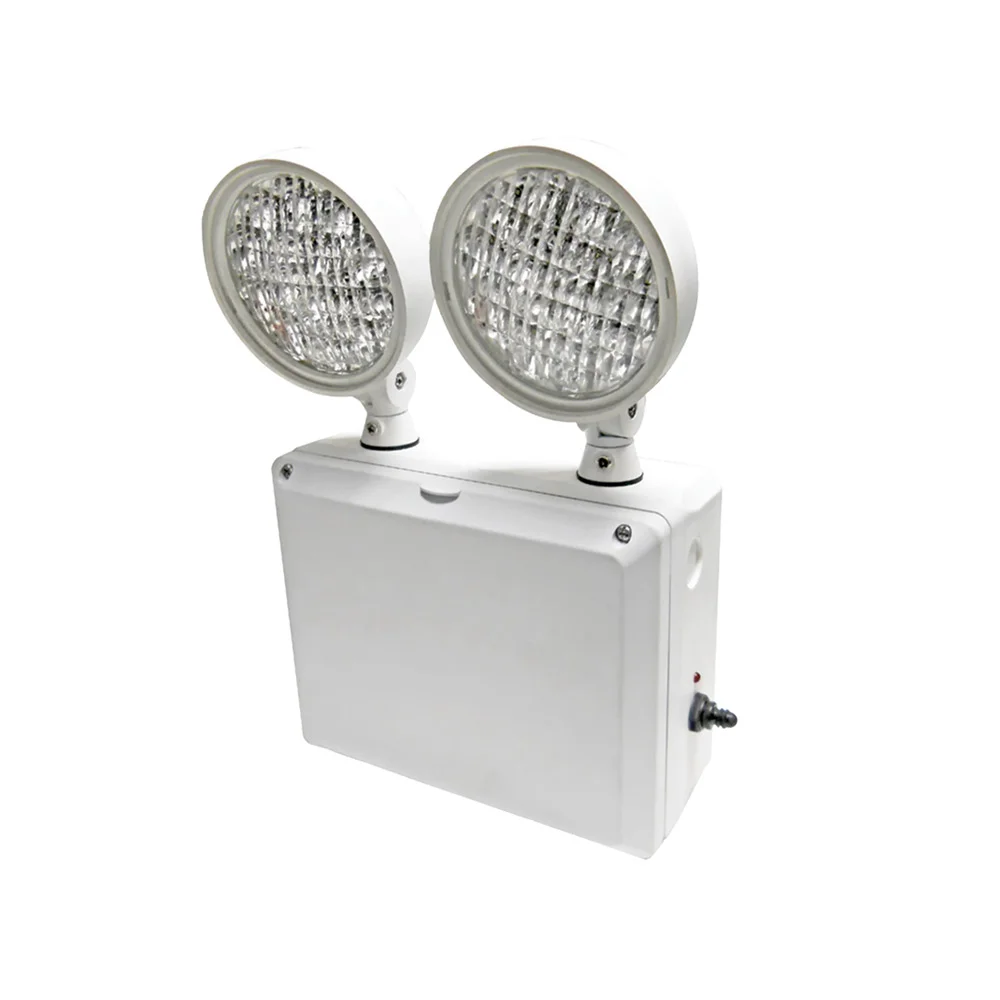

ELPWL
Wet Location LED Thermoplastic Emergency Light
Includes two adjustable 2W LED lighting heads.
UL Listed for wet location and cold weather installations.
Includes 3.7W remote capacity.
Available Downloads
- Construction
- Injection Molded ABS housing with a 5VA flame retardant thermoplastic rating.
- Temperature Rating
- From -4°F to 122°F
- Approvals
- UL 924
- NFPA 101 Life Safety Code
- NFPA 70-NEC
- OSHA
- UL Wet Location Listed
Product Details
Emergency lighting systems provide necessary illumination for facility occupants to access safe passage from a structure when standard lighting fails. Battery-supported emergency lighting illuminates the quickest and safest route to exit a building during a power failure. Building codes require that stairways, corridors, and egress points be lit in the event of a power failure.
The ELP 50-100 Watt Thermoplastic Emergency Light features an injection-molded ABS housing with two top-mounted lighting heads that can be field modified for side-mount applications. Keyhole mounting slots and conduit knockouts are provided for additional mounting possibilities, and nickel-plated steel counter-sunk screws secure a snap-fit door. The ELP is UL 924 Damp Location approved and provides a minimum of 90 minutes of emergency run-time. A maintenance-free, sealed lead calcium battery is included, and captive battery restraints are standard and suit ZONE 4 type applications. A line-latch prevents the unnecessary discharge of the battery during installation, and brownout sensing ensures emergency operation during periods of low line voltage.
The ELP 50-100 Watt Thermoplastic Emergency Light features an injection-molded ABS housing with two top-mounted lighting heads that can be field modified for side-mount applications. Keyhole mounting slots and conduit knockouts are provided for additional mounting possibilities, and nickel-plated steel counter-sunk screws secure a snap-fit door. The ELP is UL 924 Damp Location approved and provides a minimum of 90 minutes of emergency run-time. A maintenance-free, sealed lead calcium battery is included, and captive battery restraints are standard and suit ZONE 4 type applications. A line-latch prevents the unnecessary discharge of the battery during installation, and brownout sensing ensures emergency operation during periods of low line voltage.
