CEL

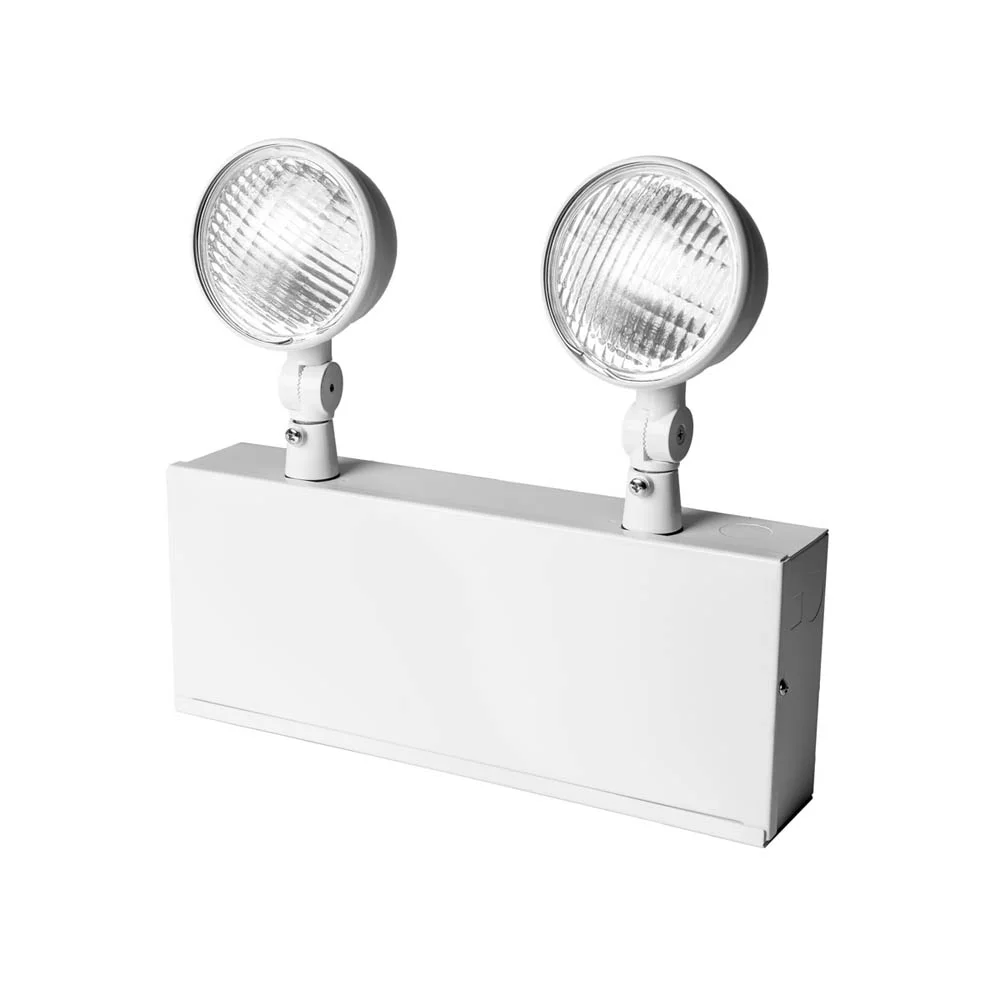

Chicago Emergency Light
Approved for use in the city of Chicago.
Two, 6V adjustable white LED lamp heads in metal housing and PC lens provide optimal light distribution.
3.3W (3 LEDs x 1.1W) per head provides a light output of 335 lumens.
Available Downloads
- Construction
- Durable, 20-gauge steel housing
- White or black powder coat finish
- Electrical
- Dual 120/277 voltage
- 6V sealed lead acid, maintenance-free, rechargeable battery
- Remote capacity of 5.4W standard
- Mounting
- Knockouts on the back for wall mount
- Side and top knockouts for conduit feed applications
- Temperature Rating
- From 68°F to 122°F
- Approvals
- City of Chicago Approved
- UL 924
- UL Listed for Damp Location
- NFPA 101 Life Safety code
- NFPA 70-NEC
- OSHA
Product Details
Emergency lighting systems provide necessary illumination for facility occupants to access safe passage from a structure when standard lighting fails. Battery-supported emergency lighting illuminates the quickest and safest route to exit a building during a power failure. Building codes require that stairways, corridors, and egress points be lit in the event of a power failure.
The CEL emergency lighting unit is specifically designed and approved for use in the city of Chicago. Two, 6V adjustable white 3.3 w LED lamp heads with polycarbonate lenses provide optimal light distribution and 335 lumens. The metal housing is available in a white or black finish. A unique LED indicator light alerts occupants of the battery condition.
The CEL emergency lighting unit is specifically designed and approved for use in the city of Chicago. Two, 6V adjustable white 3.3 w LED lamp heads with polycarbonate lenses provide optimal light distribution and 335 lumens. The metal housing is available in a white or black finish. A unique LED indicator light alerts occupants of the battery condition.
