LPDCCG2

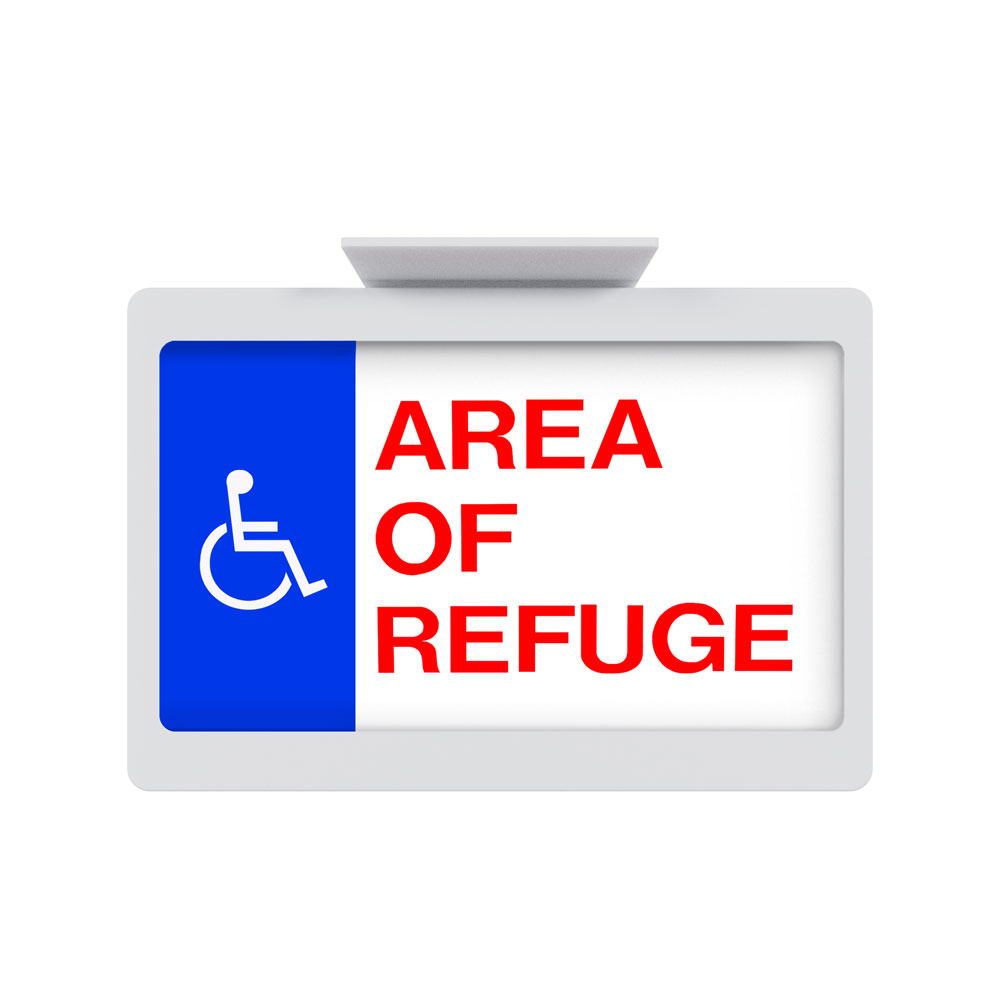

Die-Cast Aluminum LED Exit Sign, Custom Graphics

Low power consumption of less than 5W.

Maintenance-free, high-intensity LEDs deliver illumination four times brighter than the UL 924 requirements, while a specially designed diffuser enhances brightness and ensures uniform light distribution.

Low-profile universal canopy with cast 3/4” nipple and locking nuts.

  • Construction
  • Injection-molded reflector ensures easy installation, maintenance, and even illumination
  • Heavy-duty, three-piece die-cast aluminum housing with a removable front stencil and light seal.
  • Sleek 2.5” profile with softened corners and chamfered edges.
  • Optional polycarbonate face shield, tamper-proof screws, swivel pendant, and specialty mounts. See wet location spec sheet.
  • Input Power
  • AC models: 3.24W
  • EM models: 4.08W
    Letters
  • 6.0” high; 0.75” stroke
  • Approvals
  • UL 924 Listed to 100ft Visibility Distance
  • CEC Title 20 Compliant
  • NFPA 101 Life Safety Code
  • NFPA 70-NEC
  • OSHA
  • NEMA 4X (See Wet Location)
  • BAA Compliant
