LPDC2-HY

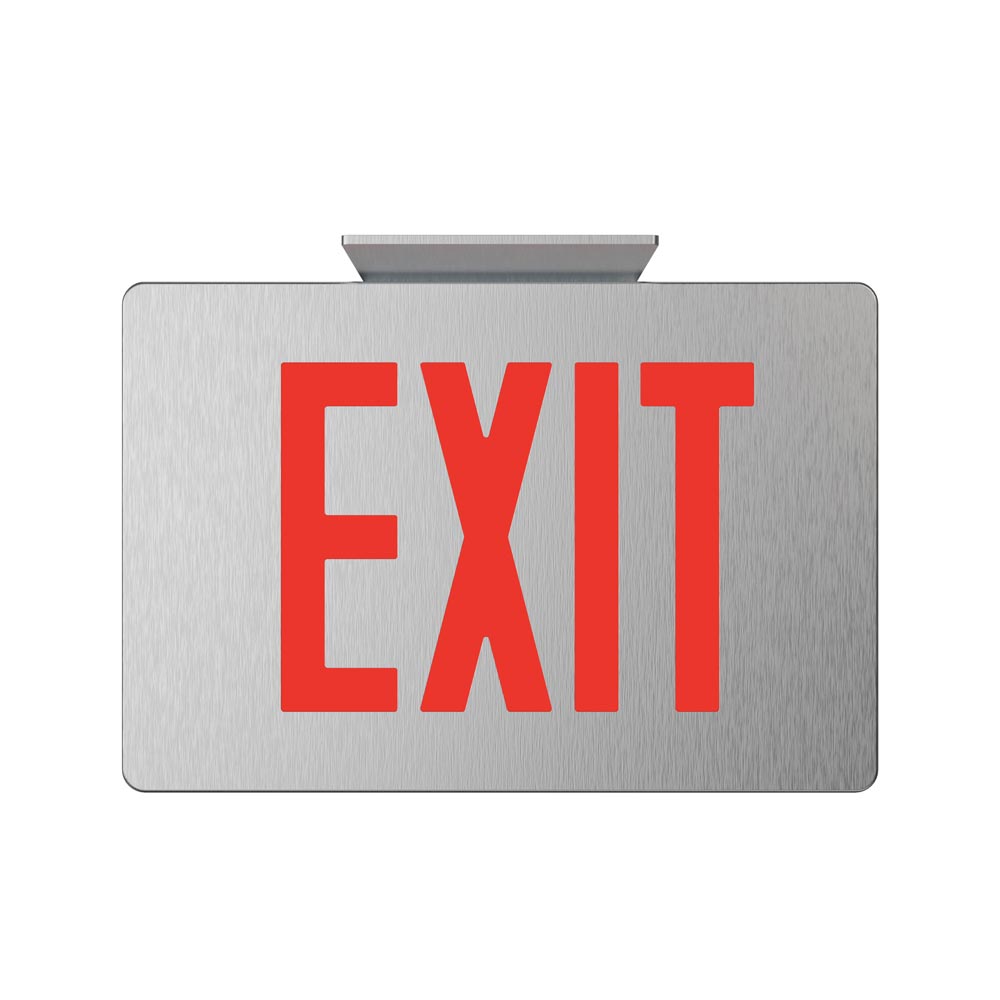

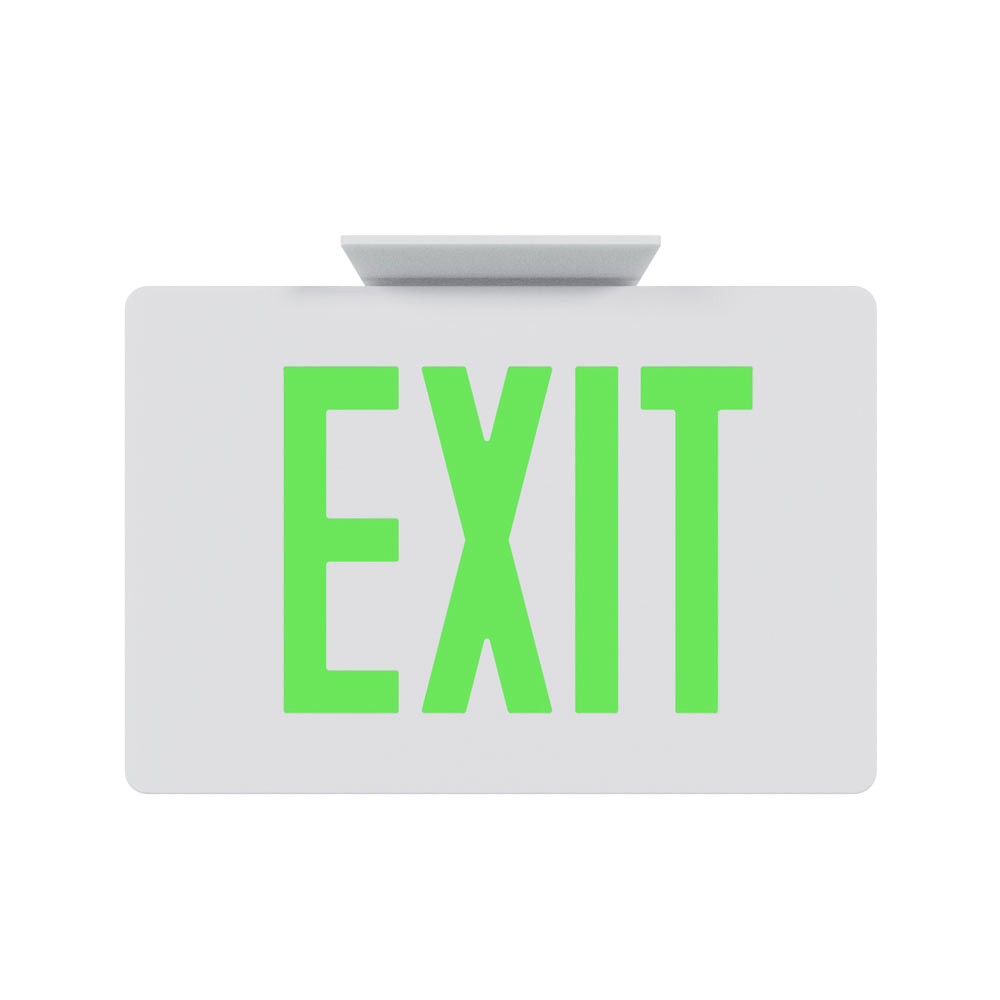

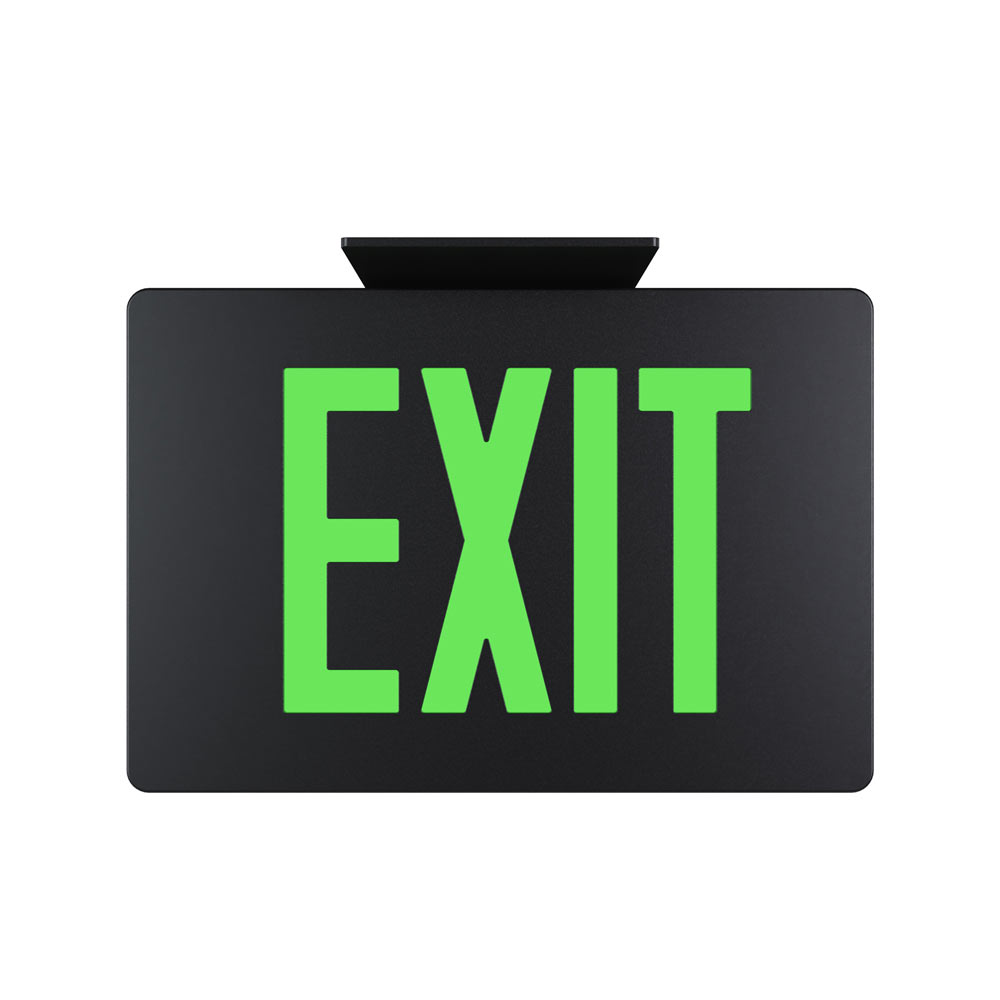

Photoluminescent/LED Die-Cast Aluminum Exit Sign
100-foot viewing distance.
Internal LEDs charge internal photoluminescent material, which illuminates the letters when AC power fails
This device contains no batteries, expanding the expected lifetime to 25+ maintenance-free years.
Available Downloads
- Construction
- Injection-molded reflector ensures easy installation, maintenance, and even illumination.
- Heavy-duty, three-piece die-cast aluminum housing with a removable front stencil and light seal.
- Sleek 2.5” profile with softened corners and chamfered edges.

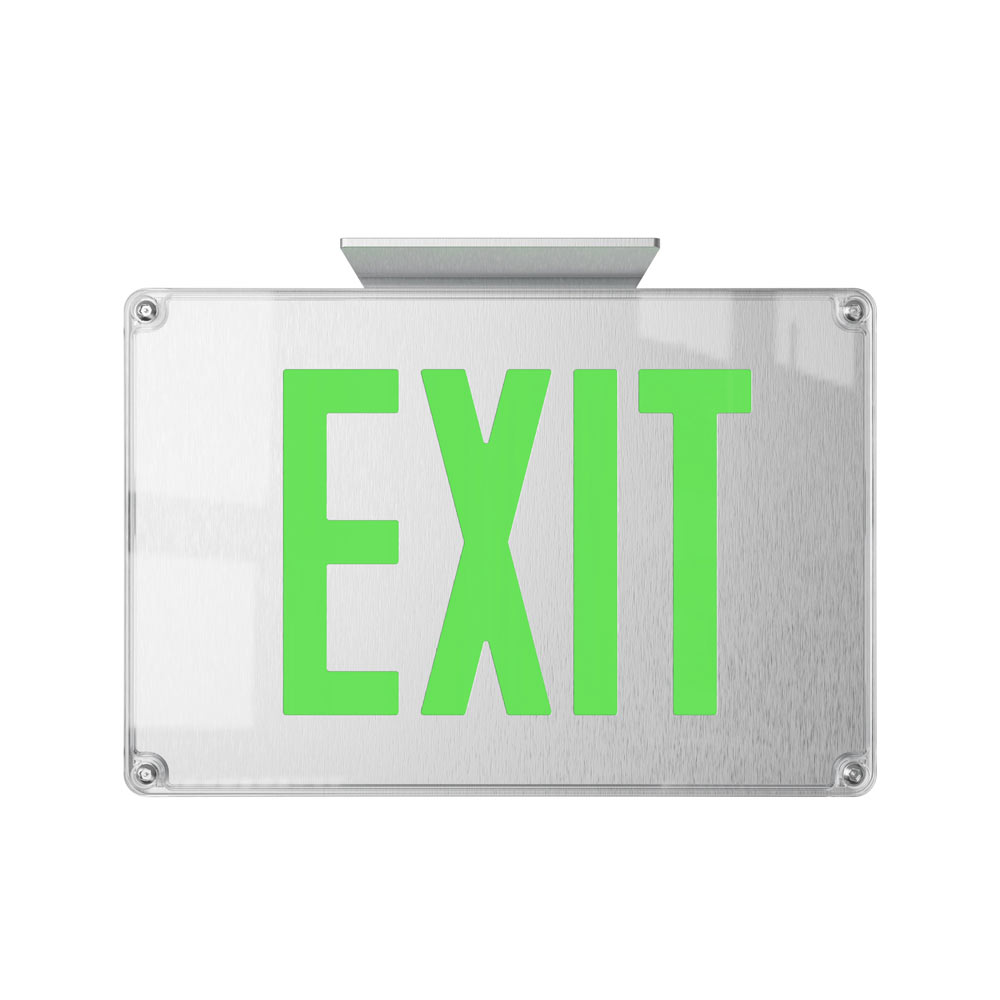

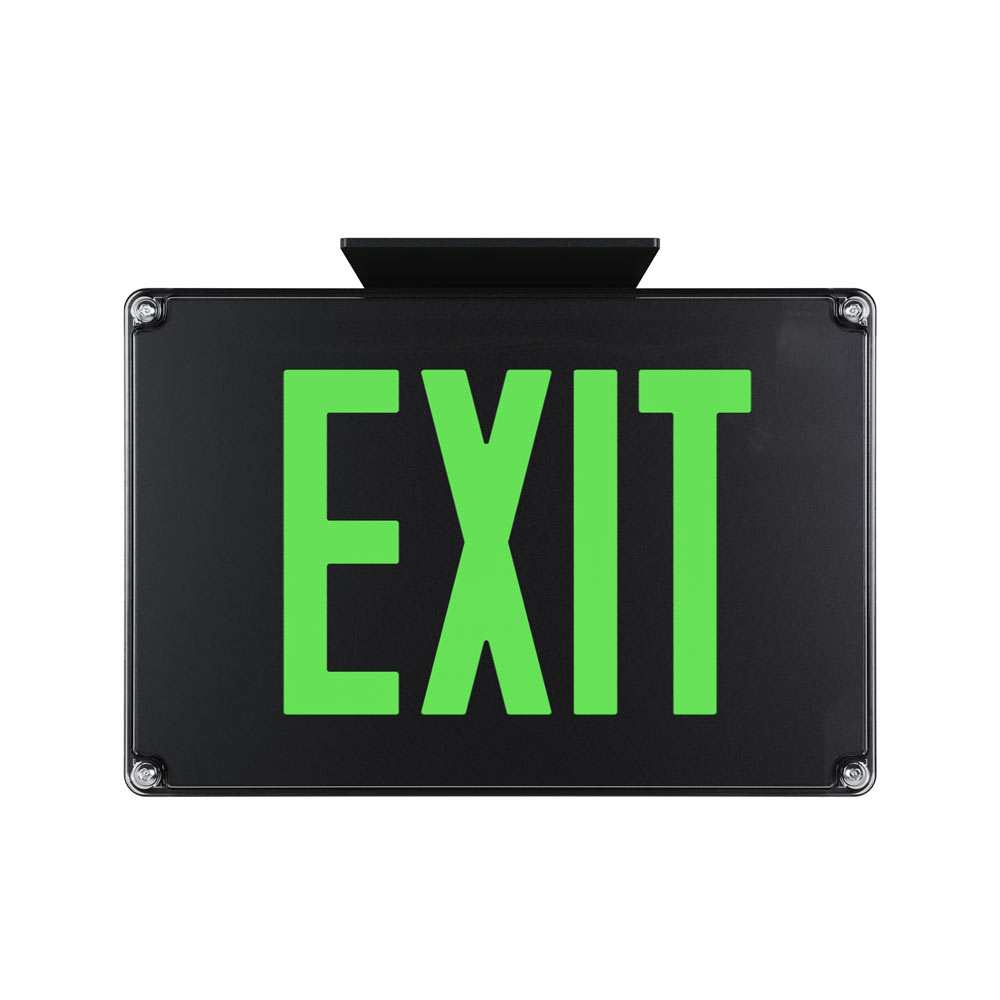

- Optional polycarbonate face shield, tamper-proof screws, swivel pendant, and specialty mounts. See wet location spec sheet.
-
Letters
- 6.0” high; 0.75” stroke
- NFPA type, universal field selectable chevrons.
- Canopy
- Low-profile universal canopy with 0.75” cast nipple and locking nuts.
- Approvals
- UL 924 Listed to 100ft Visibility Distance
- CSA C22.2 No. 141-10
- CEC Title 20 Compliant
- NFPA 101 Life Safety Code
- NFPA 70-NEC
- OSHA
- BAA Compliant
