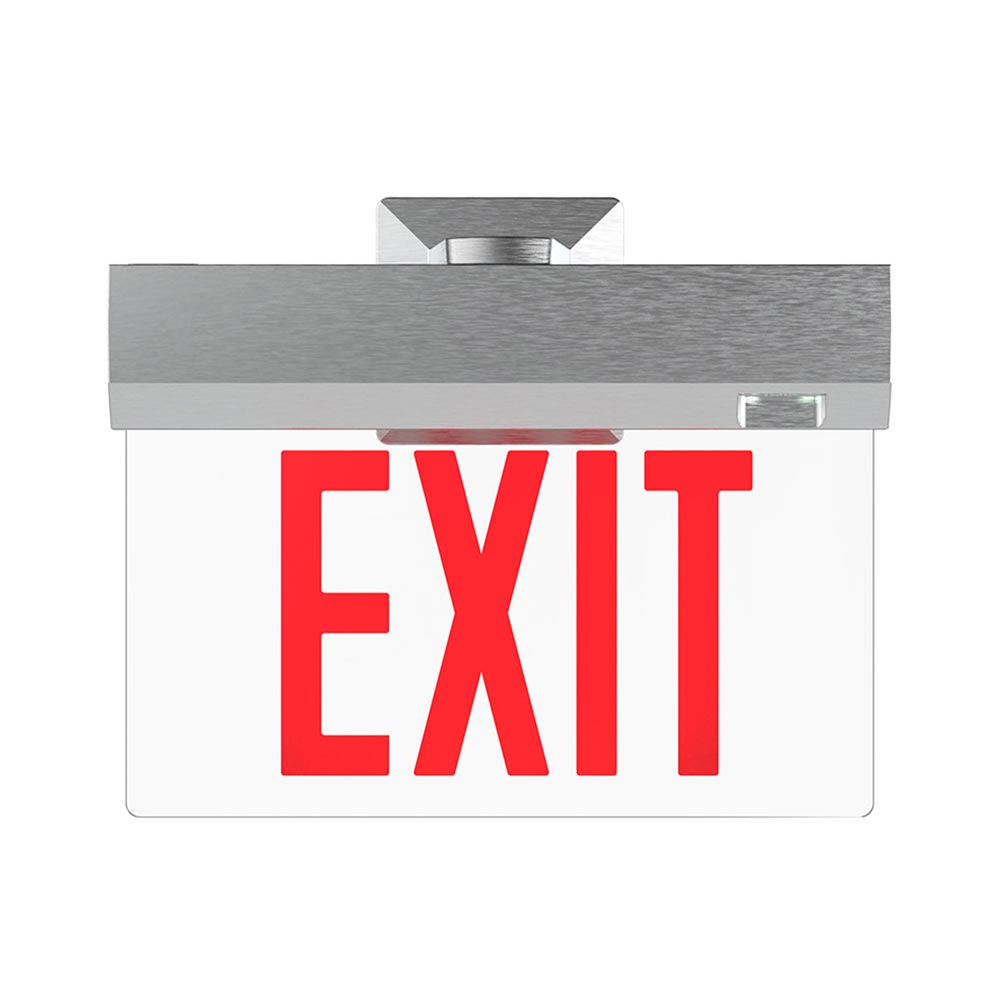

ELTCG2

Elite Edge-Lit Exit Sign, Custom Graphics

Spec grade with a universal surface mount option for simplified installation.

Premium long-life, high-temperature fused nickel cadmium battery with standard UL listed 3-hour run time.

Standard battery diagnostic system monitors battery status, detects cell failure, and issues an alert when there’s reduced capacity, indicating the need to replace the battery.

  • Construction
  • “Snap-in Lens” for easy installation.
  • Recessed back box can be pre-installed at job site.
  • Precision die-cast aluminum housing with a flawless, laser-formed acrylic legend.
  • Hinged springs allow for concealed mounting hardware on recessed models.
  • Recessed back box meets New York specifications.
  • Input Power
  • AC models: Red 1.5W; Green 2.3W
  • EM models: Red 2.5W; Green 3.0W
    Letters
  • 6.0” high; 0.75” stroke
  • Approvals
  • UL 924
  • CEC Title 20 Compliant
  • NFPA 101
  • NFPA 70
  • OSHA
  • Backbox is IC rated and meets NYC/City of Chicago Specifications.
  • FCC Title 47 Part 15, Subpart B

Product Details

Above doors and in hallways around the globe, exit signs typically blend into the scenery in offices, stores, and nearly all public facilities. But in an emergency, clearly illuminated exit signs save lives by communicating the route of safe escape out of a building. These lighted signs also guide first responders as they navigate through unfamiliar structures. Building safety codes require installing reliable illuminated exit signs that are visible at all times. The safety of patrons and employees should be the top priority of every business, company, and landlord. Properly illuminated emergency exit signs are a vital component of any emergency preparedness plan.

The ELTCG2 edge-lit exit offers a universal surface mount option for ease of installation, with additional mounting options for recessed, top, end, back, or pendant mounting. Standard battery diagnostic system monitors battery status and issues an alert when reduced capacity is detected. Self-test / self-diagnostic monitoring available as an option. Four standard frame colors are available, brushed aluminum, black, painted brass, white, and custom color. Specialty wording, finish, and custom graphics can be specified and are compatible with red, green, and blue letter colors.
